Electronic Brake Control Module: Service and Repair

Electronic Brake Control Module Replacement

Removal Procedure

Warning: Refer to Brake Fluid Irritant Warning Brake Fluid Irritant Warning.


Caution: Refer to Brake Fluid Effects on Paint and Electrical Components Caution Brake Fluid Effects on Paint and Electrical Components Caution.

1. Remove the brake pressure modulator valve (BPMV) assembly. Refer to Brake Pressure Modulator Valve Replacement Service and Repair.

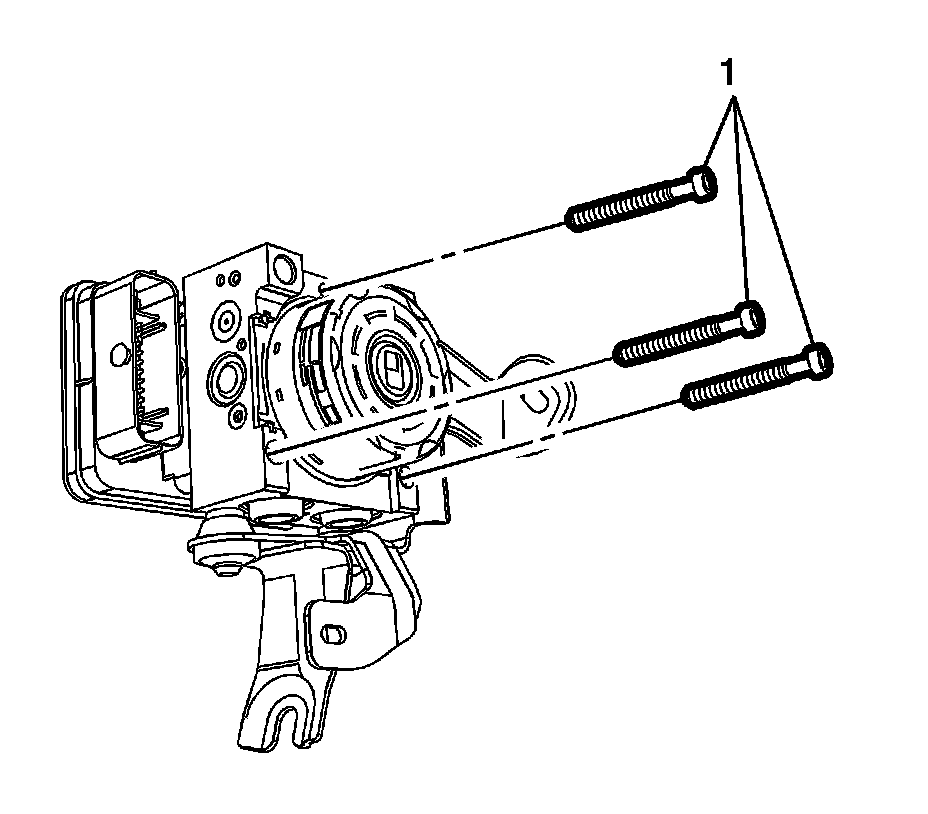

2. Remove the electronic brake control module (EBCM) bolts (1),





Note: Do not pry the components apart.

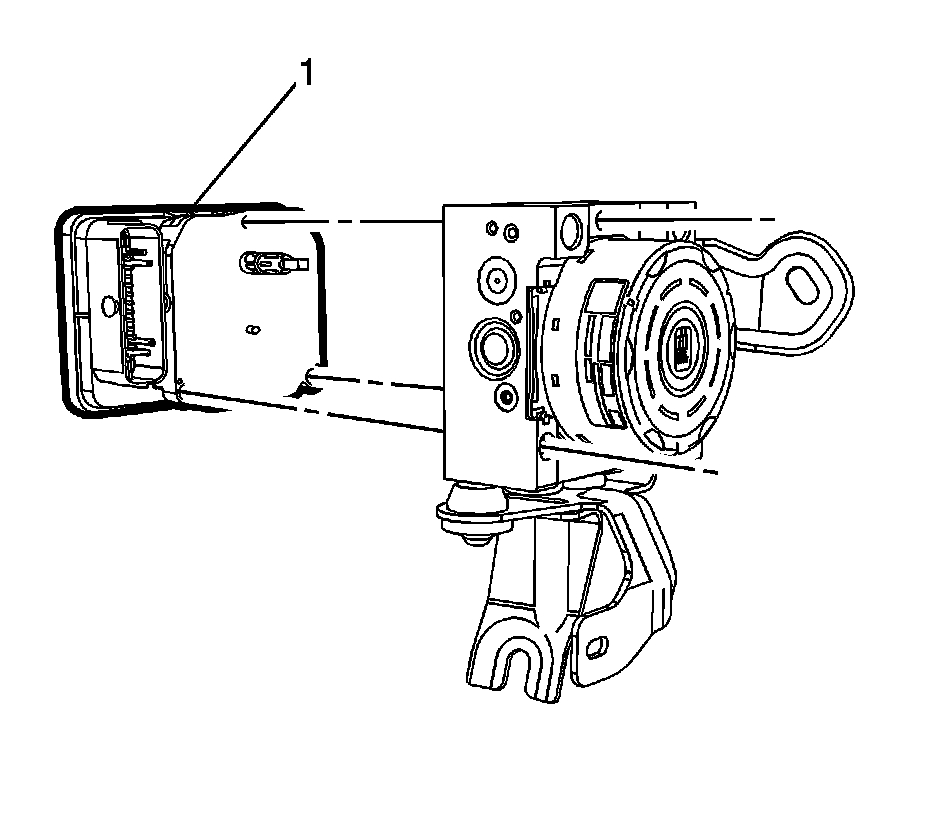

3. Carefully separate the EBCM (1) from the BPMV.

4. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.

Installation Procedure




1. Install the EBCM (1) to the BPMV.





Caution: Refer to Fastener Caution Fastener Caution.

2. Install the EBCM bolts (1) and tighten to 5 Nm (44 lb in),

3. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement Service and Repair.

4. Program the EBCM. Refer to Control Module References Control Module References.
