Power Steering Pump Bracket Replacement
Power Steering Pump Bracket Replacement

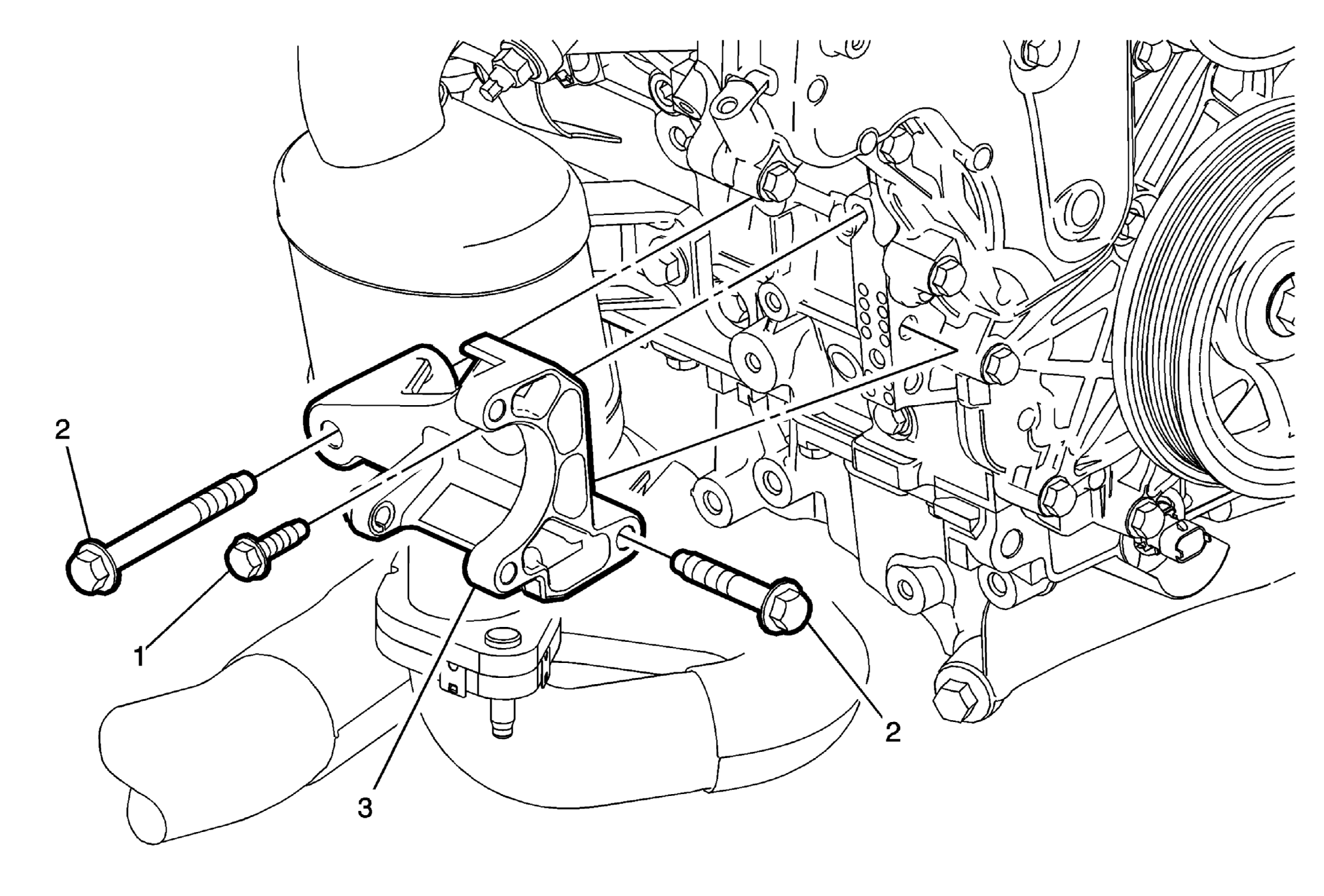

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the power steering pump. Refer to Power Steering Pump Replacement . |
|
| 1 | Power Steering Pump Bracket Bolt - Short
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Power Steering Pump Bracket Bolt - Long (Qty: 2) Tighten 58 N.m (43 lb ft) |
| 3 | Power Steering Pump Bracket |
