Steering Gear Boot Replacement

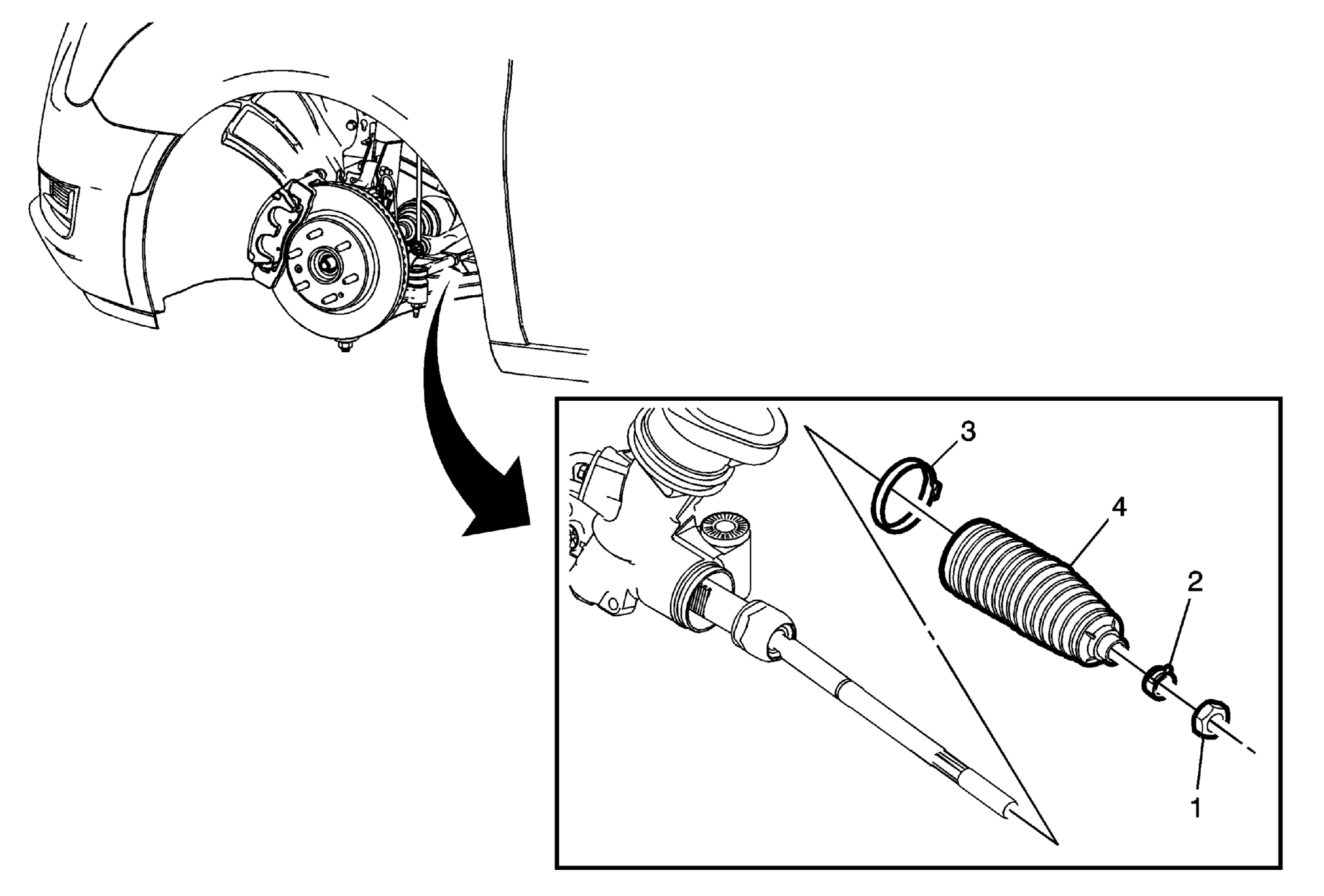

Courtesy of GENERAL MOTORS COMPANY Steering Gear Boot Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the steering linkage outer tie rod. Refer to Steering Linkage Outer Tie Rod Replacement .
- If servicing the right side steering gear boot, remove the steering gear heat shield. Refer to Steering Gear Heat Shield Replacement .
|
| 1 |
Steering Linkage Inner Tie Rod Nut |
| 2 |
Steering Gear Boot Outer Clamp |
| 3 |
Steering Gear Boot Inner Clamp Procedure
- Cut the steering gear boot inner clamp. Discard the clamp.
- Use the DT-35910
pliers to install a NEW steering gear boot inner clamp.
Special Tools
DT-35910
Drive Axle Seal Clamp Pliers
For equivalent regional tools, refer to Special Tools . |
| 4 |
Steering Gear Boot Procedure
- After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If none is evident, continue with the repair. If corrosion or contamination is evident, replace the steering gear. Refer to Steering Gear Replacement (FWD) , Steering Gear Replacement (AWD) .
- Install the steering gear boot and ensure the boot is seated in the assembly groove of the steering gear before installing the steering gear boot clamps.
|
