Automatic Level Control Air Compressor Insulator Replacement

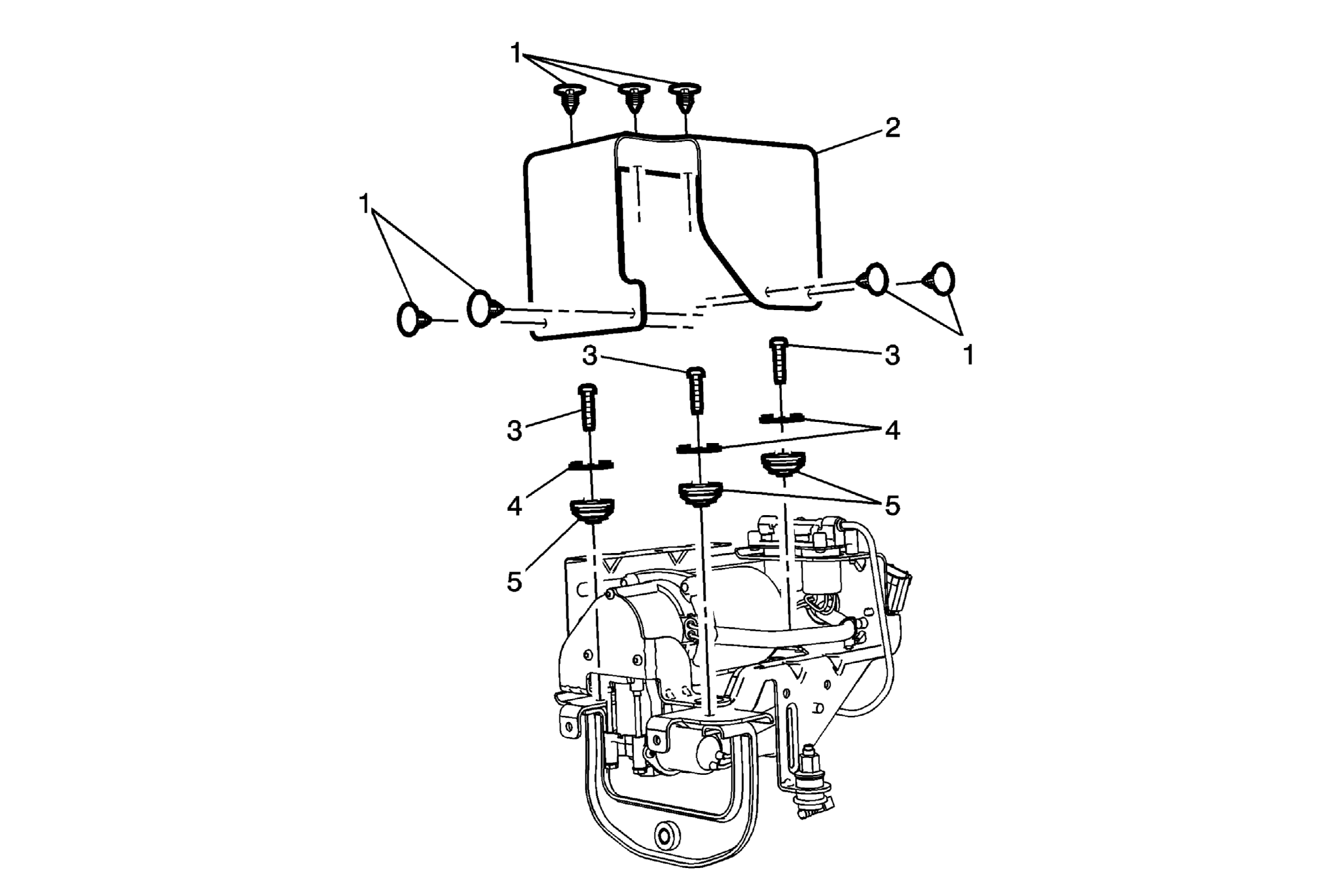

Fig 1: Automatic Level Control Air Compressor Components
GM2887502Courtesy of GENERAL MOTORS COMPANY
Automatic Level Control Air Compressor Insulator Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the rear air spring compressor assembly. Refer to Rear Air Spring Compressor Replacement .
  2. Position the rear air spring compressor assembly upside down on a suitable work surface.
1 Push-in Fasteners (Qty: 7)
2 Automatic Level Control Air Compressor Shield
3 Automatic Level Control Air Compressor Insulator Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .

4 Automatic Level Control Air Compressor Insulator Washer (Qty: 3)
5 Automatic Level Control Air Compressor Insulator (Qty: 3)
