Seat Temperature Control Module - Driver X1 (KU1)

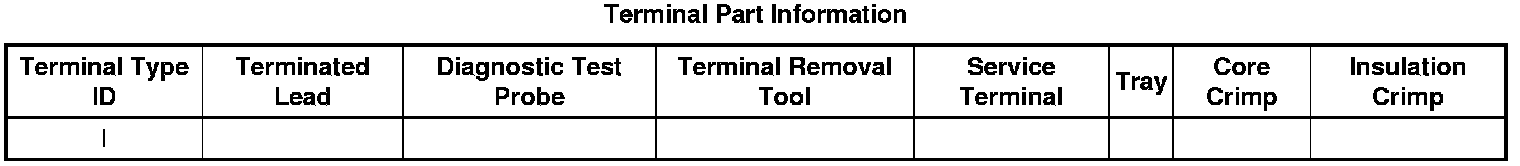

Component Connector End Views

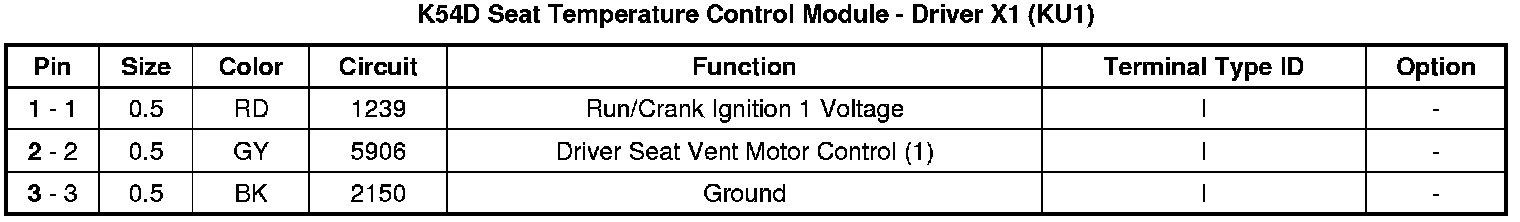

K54D Seat Temperature Control Module - Driver X1 (KU1)
