Fuel Pipe Shield Replacement
Fuel Pipe Shield Replacement

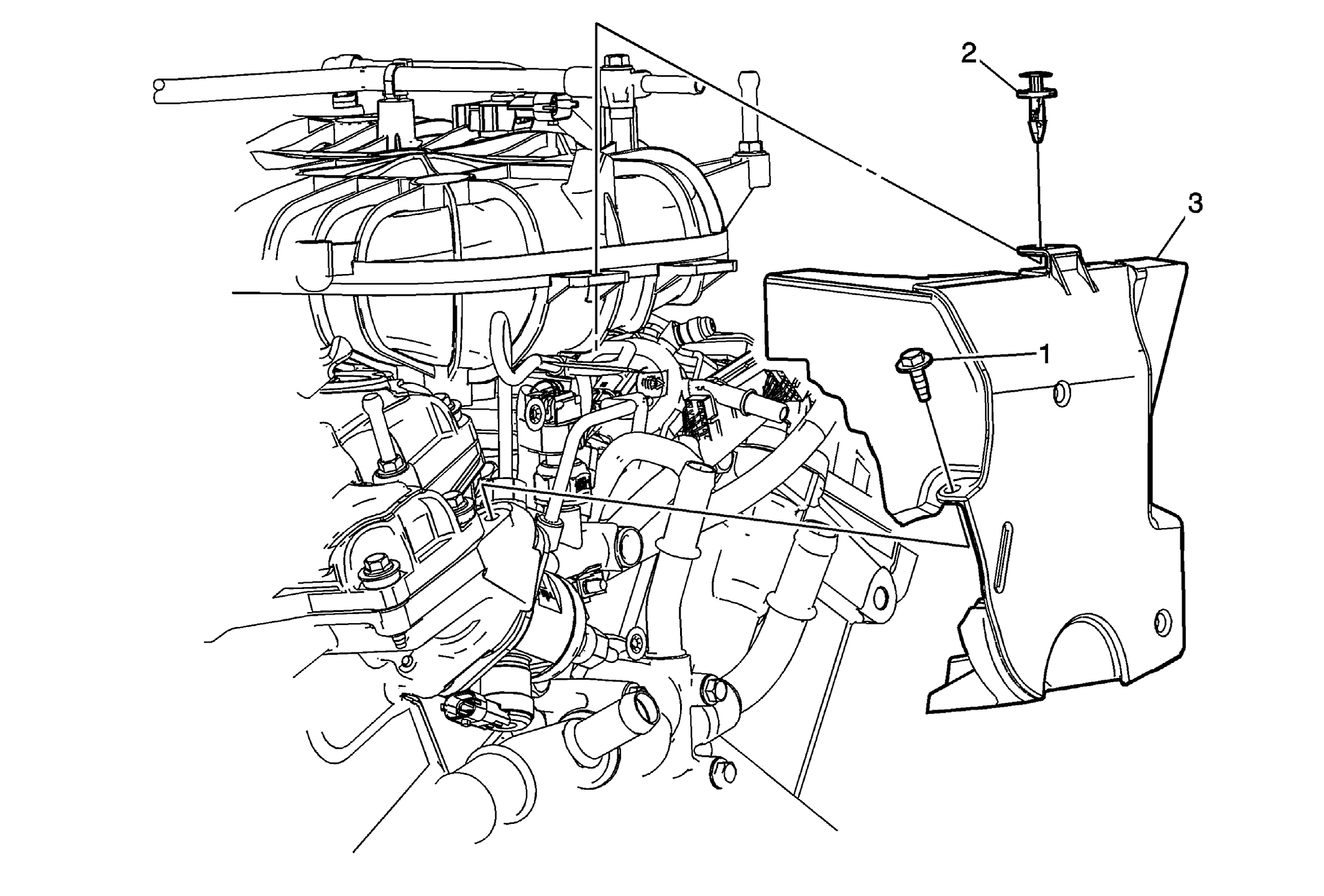

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 (89 lb in) |
| 2 | Retainer |
| 3 | Fuel Pipe Shield |
