Installation Procedure
- Install the fuel feed front pipe (1) to the vehicle.
- Install the fuel feed front pipe (1) to the retainers (2).
- Connect the fuel feed front pipe (1) to the fuel feed hose. Refer to Plastic Collar Quick Connect Fitting Service .
- Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement .
- Lower the vehicle.

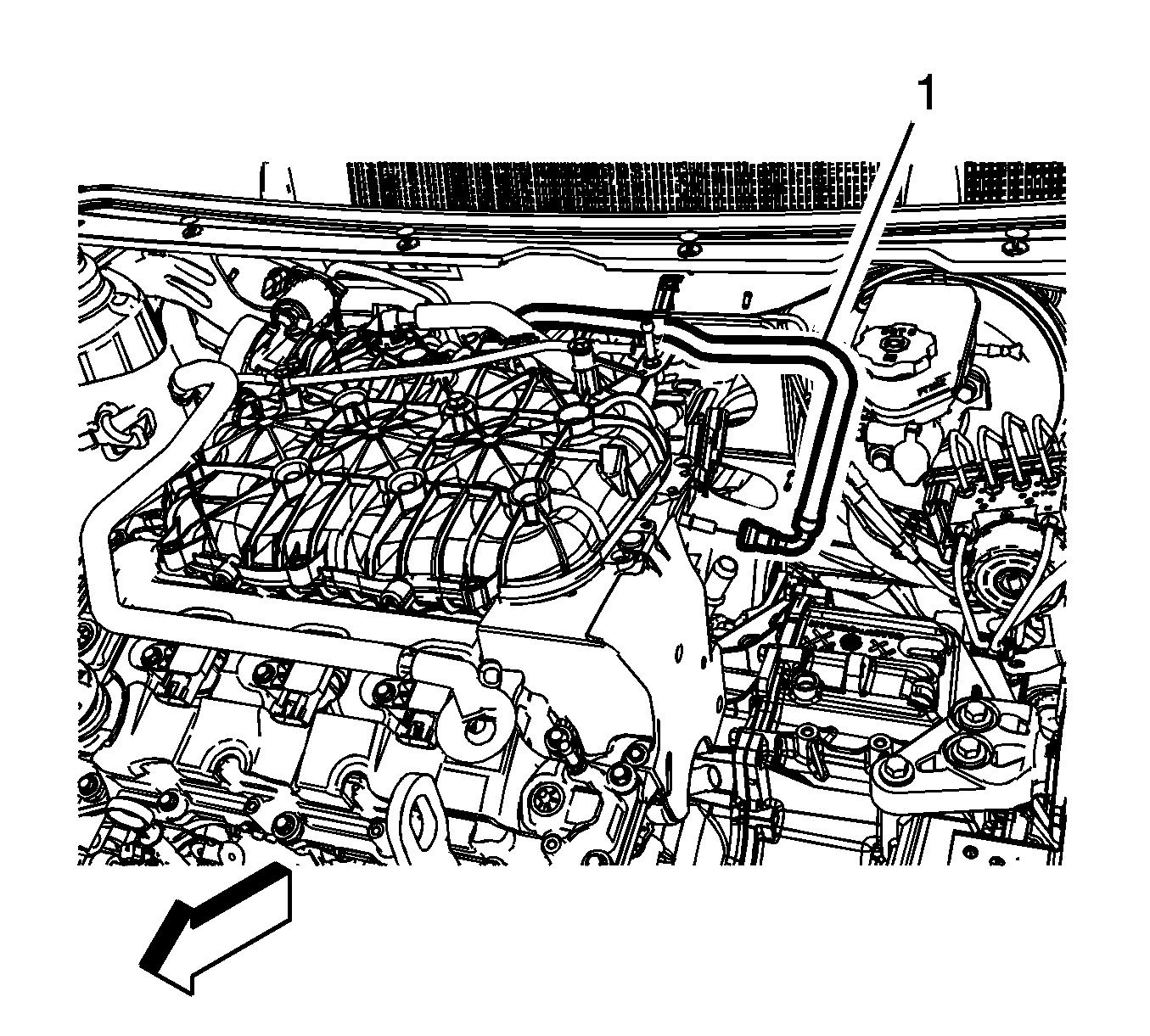

- Connect the fuel feed front pipe (1) to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
- Clip the feed pipe into the 3 retainers.
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
