Data Link Connector Power, Ground and Low Speed GMLAN

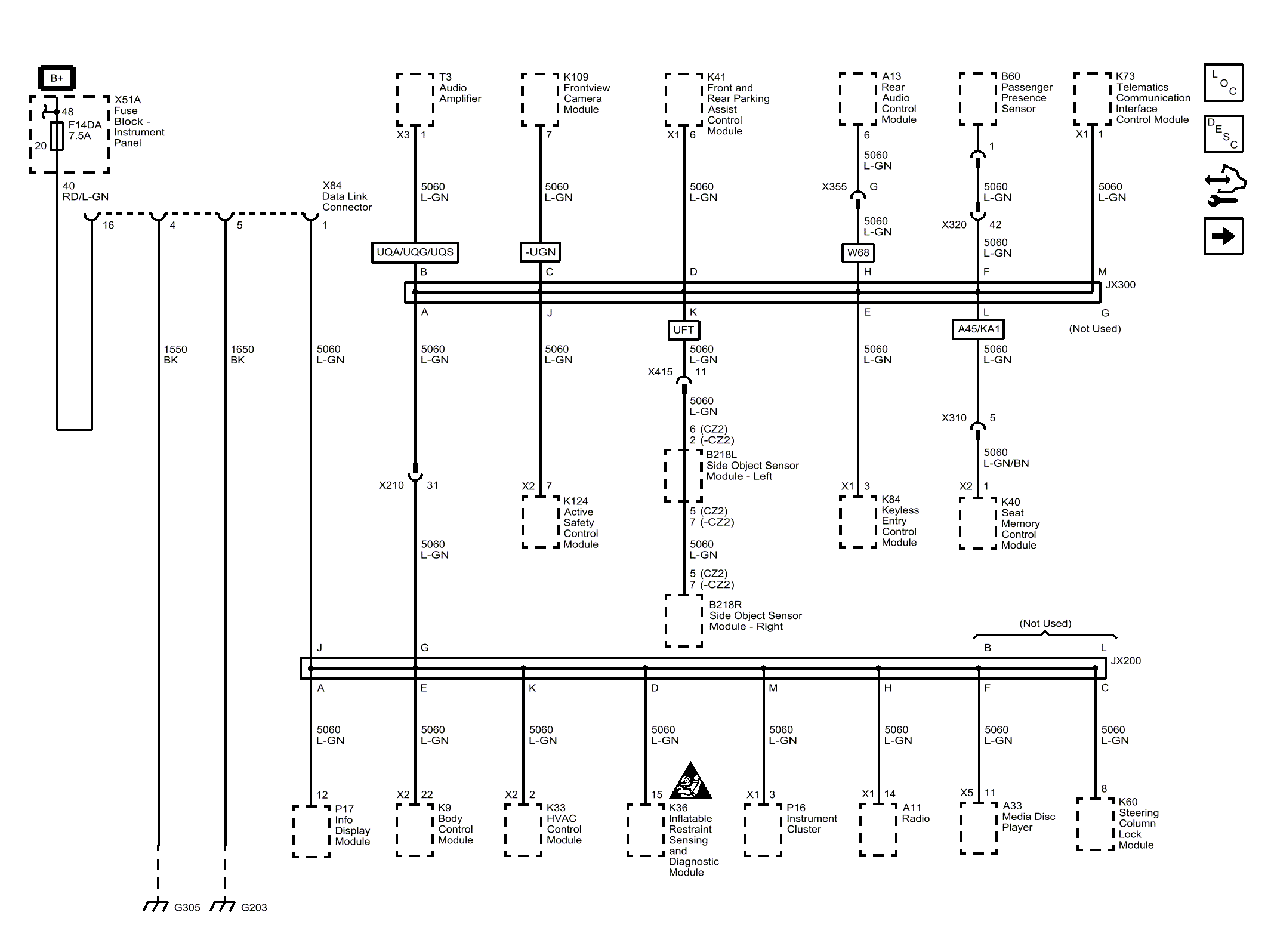

Fig 1: Data Link Connector Power, Ground and Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
