B67A Ultrasonic Intrusion Sensor 1
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
|
|

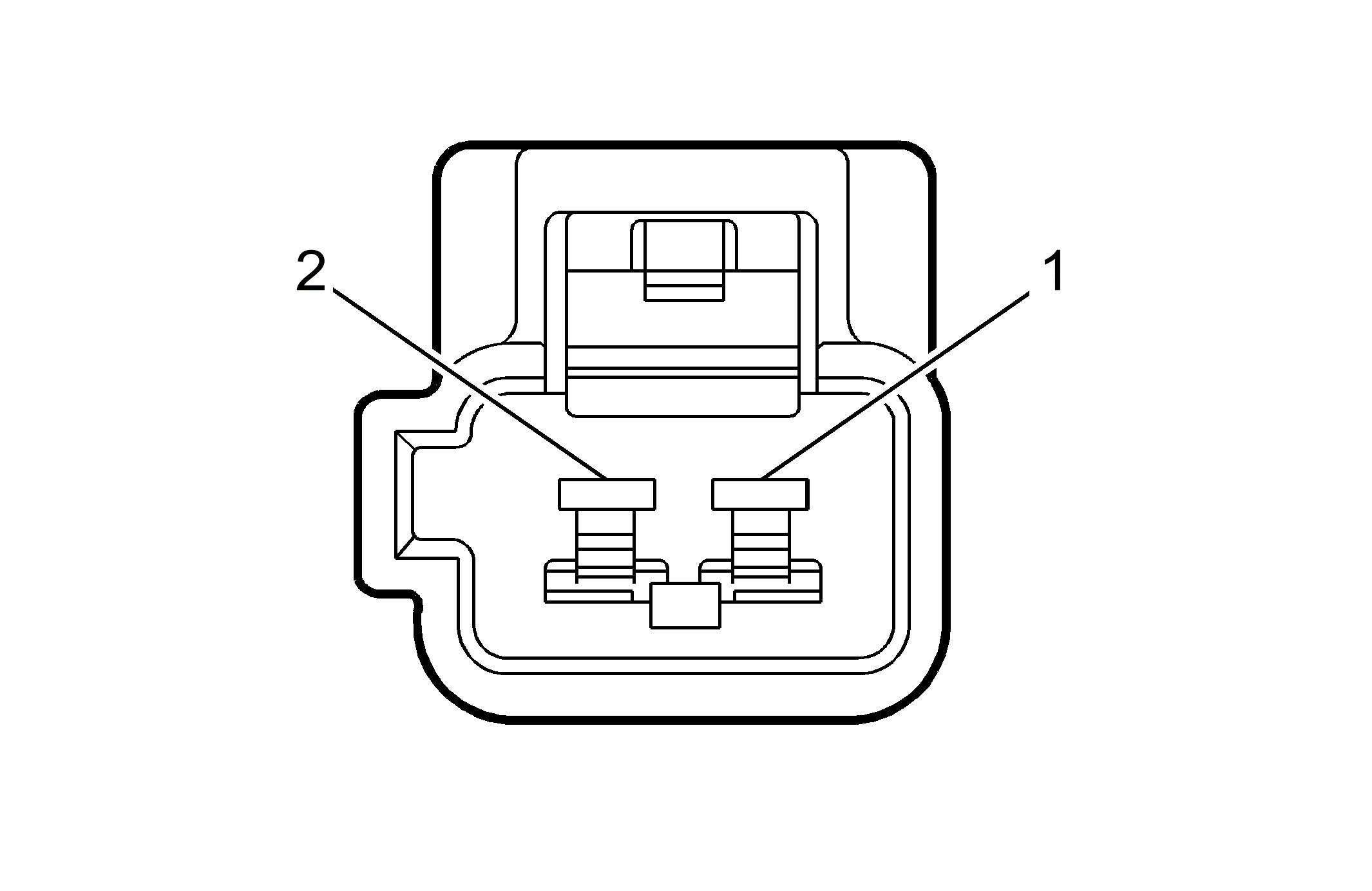

Connector Part Information
- Harness Type: Body
- OEM Connector: 12105768
- Service Connector: 13574940
- Description: 2-Way M 090 Series II (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-19 (BK) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/VT |
293 |
Rear Defog Element Control |
I |
- |
| 2 |
0.5 |
D-BU/VT |
7597 |
Glass Breakage Sensor Signal |
I |
- |
