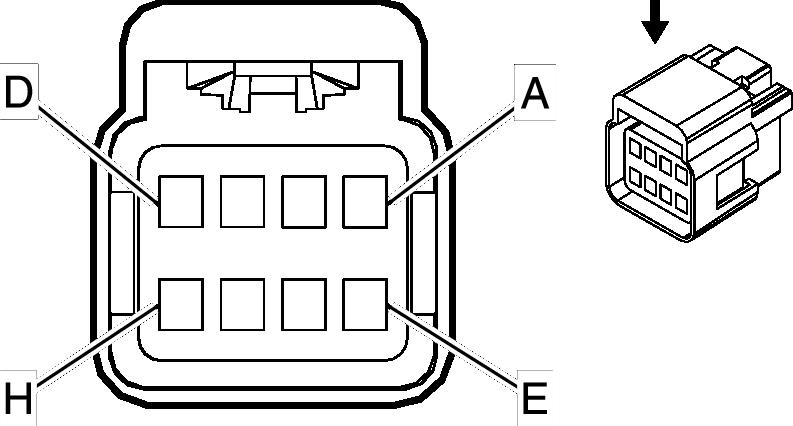

B164 Liftgate Angle Sensor
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13668276
- Service Connector: Service by Harness Assembly - See Part Catalog
- Description: 8-Way F 150 GT FBT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
BN/RD |
5803 |
Lift Gate Position Sensor 5 Volt Reference |
I |
- |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| C |
0.5 |
D-BU/WH |
5805 |
Lift Gate Position Sensor Signal (1) |
I |
- |
| D |
0.5 |
BN/YE |
5806 |
Lift Gate Position Sensor Signal (2) |
I |
- |
| E |
0.5 |
BK/D-GN |
5804 |
Lift Gate Position Sensor Low Reference |
I |
- |
| F - H |
- |
- |
- |
Not Occupied |
- |
- |
