Radio Front Speaker Grille Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

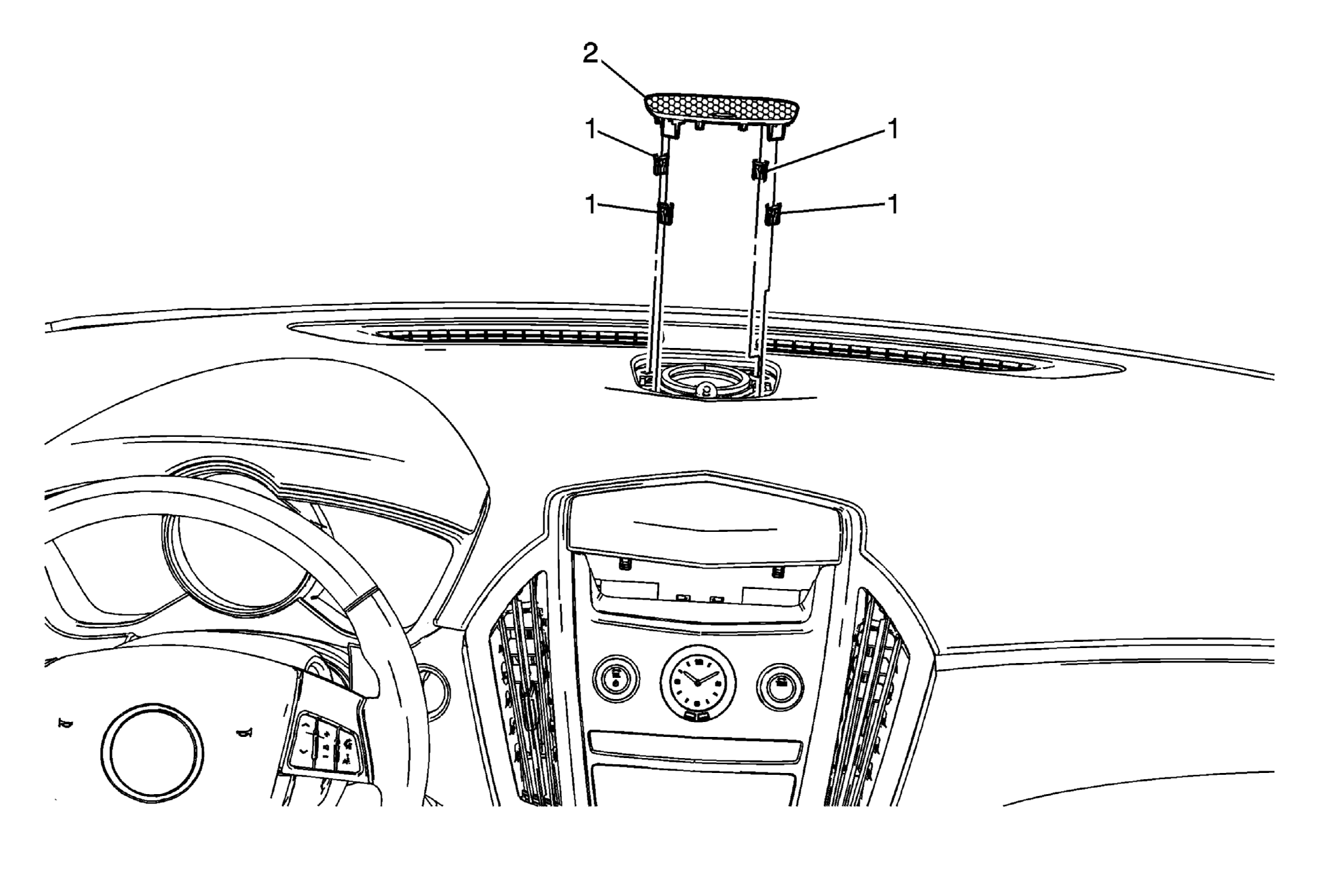

Fig 1: Radio Front Speaker Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Front Speaker Grille Retainer (Qty: 4)
2	Radio Front Speaker Grille Assembly Procedure Disconnect the electrical connection. Use a plastic flat bladed tool to remove the grille assembly. When replacing the speaker grille, transfer all necessary parts.

Callout

Component Name

Radio Front Speaker Grille Retainer (Qty: 4)

Radio Front Speaker Grille Assembly

Procedure

Disconnect the electrical connection.
Use a plastic flat bladed tool to remove the grille assembly.
When replacing the speaker grille, transfer all necessary parts.
