Park Assist - Power, Ground, Serial Data and Control (UD7 or UDF)

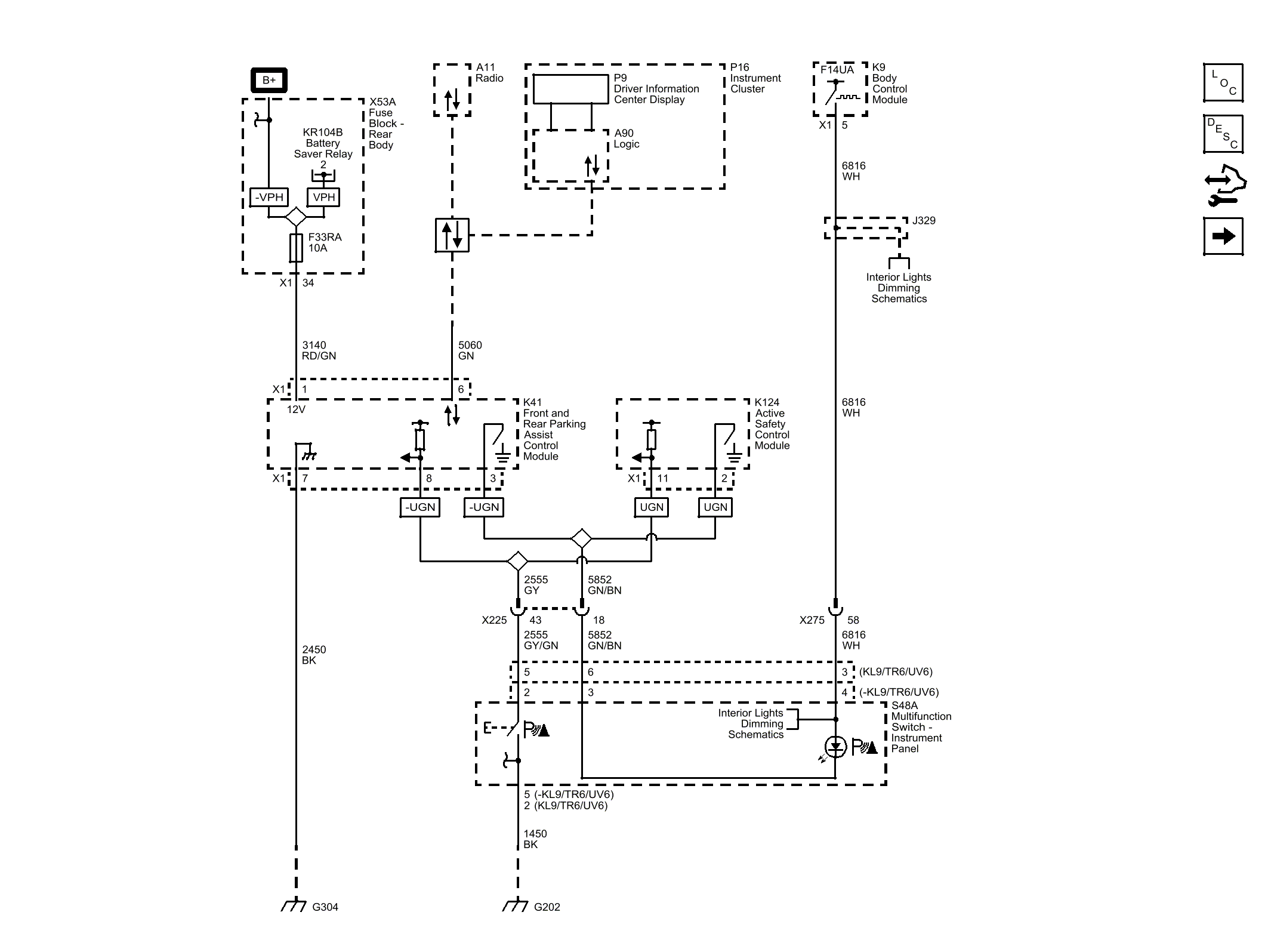

Fig 1: Park Assist - Power, Ground, Serial Data and Control Wiring Schematic (UD7 or UDF)
GM3293069Courtesy of GENERAL MOTORS COMPANY
