Human Machine Interface Control Module Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

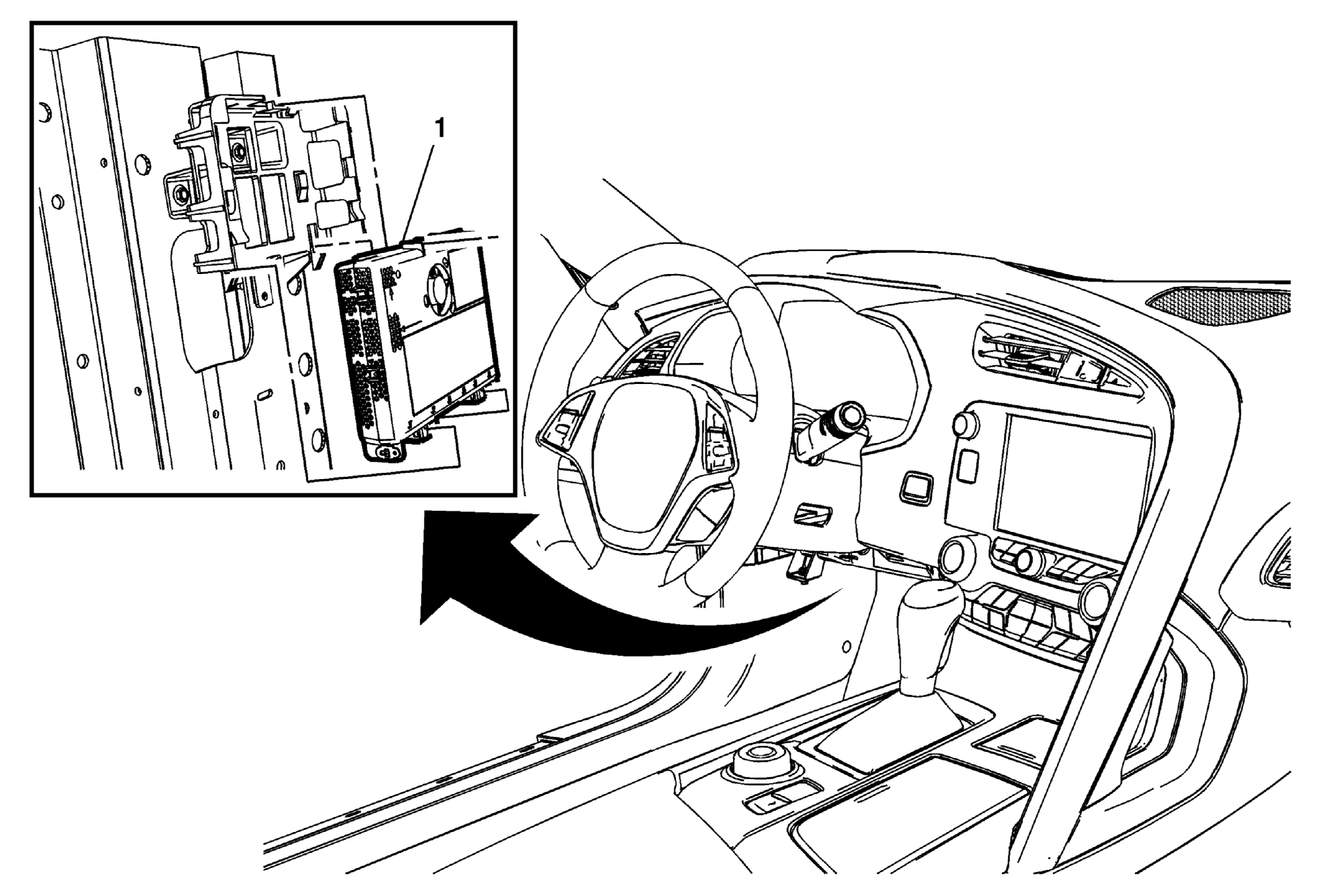

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel driver knee bolster deflector bracket. Refer to Instrument Panel Driver Knee Bolster Deflector Bracket Replacement . Remove the instrument panel insulator panel - left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
1	Human Machine Interface Control Module Procedure Disconnect the electrical connections. Release bracket tabs and slide module downward to release. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel driver knee bolster deflector bracket. Refer to Instrument Panel Driver Knee Bolster Deflector Bracket Replacement .
Remove the instrument panel insulator panel - left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

Human Machine Interface Control Module

Procedure

Disconnect the electrical connections.
Release bracket tabs and slide module downward to release.
Refer to Control Module References for programming and setup information.
