Body Control Module Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

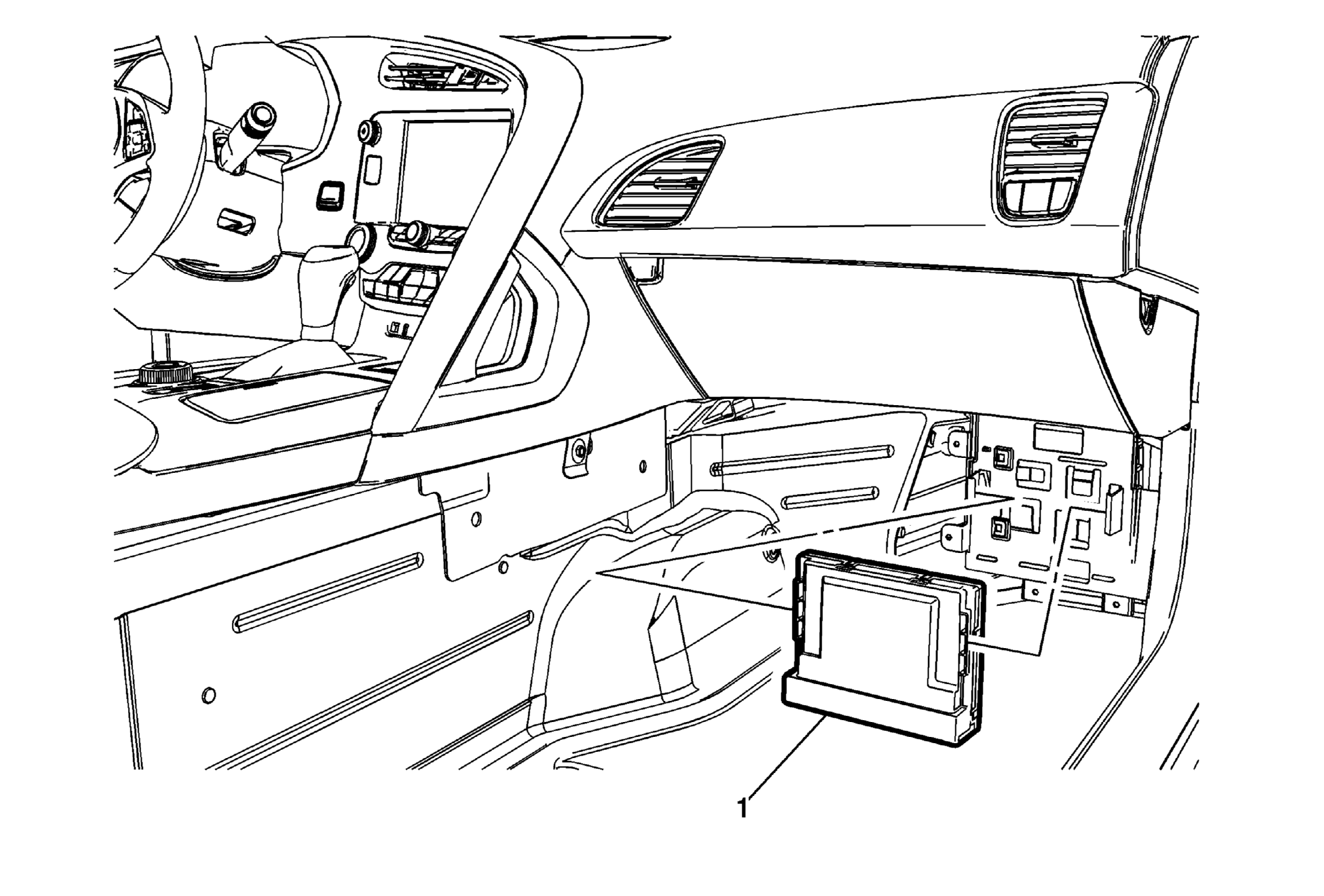

Fig 1: Body Control Module
GM3391375Courtesy of GENERAL MOTORS COMPANY
Body Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the vehicle performance data recorder bracket to gain access to the module. Refer to Vehicle Performance Data Recorder Bracket Replacement .
1 Body Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Push tabs to release the body control module from the bracket.
  3. Reprogram the module if replaced. Refer to Control Module References .
