Front View Driver Information Camera Bracket Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

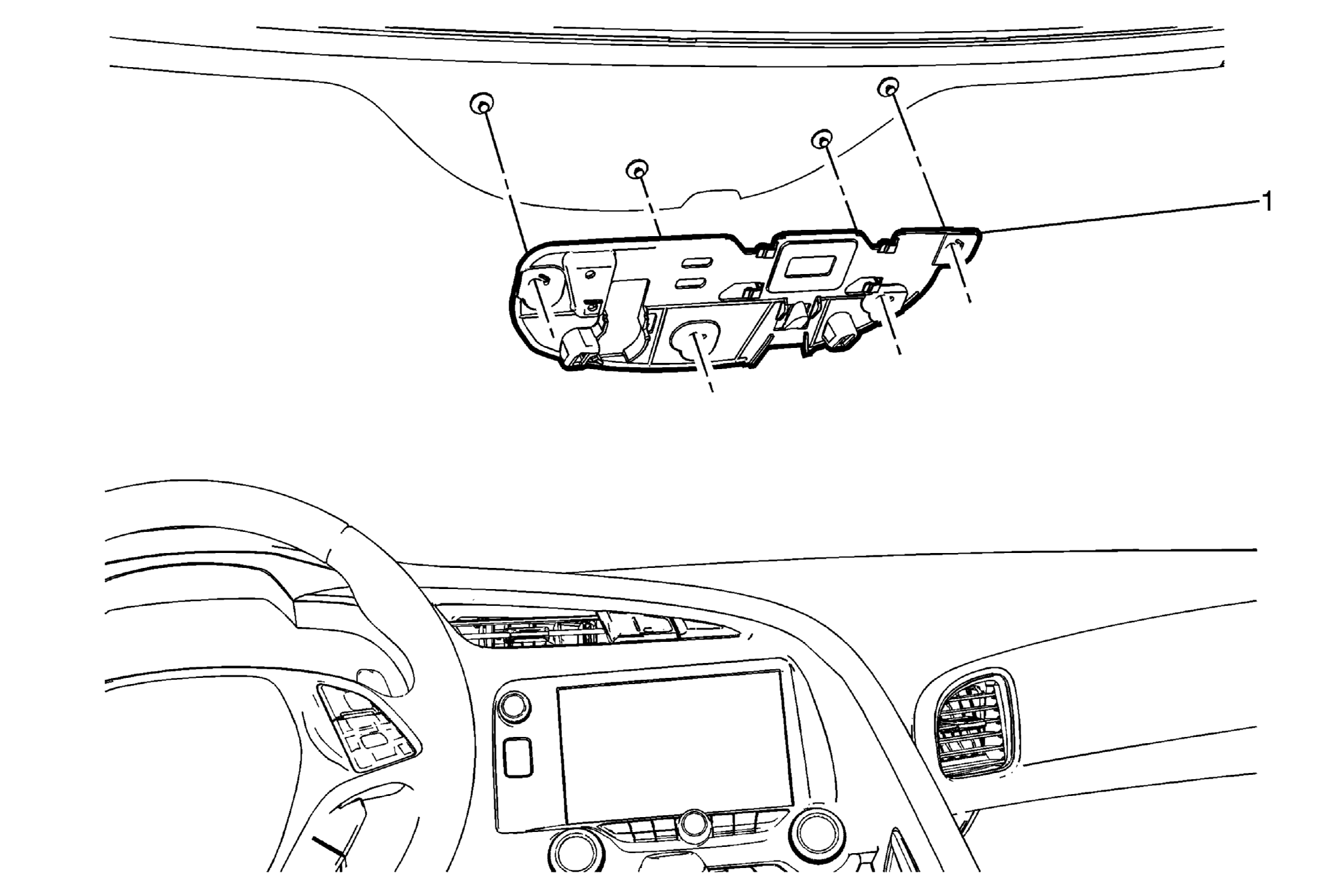

Fig 1: Front View Driver Information Camera Bracket
GM3406285Courtesy of GENERAL MOTORS COMPANY
Front View Driver Information Camera Bracket Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the vehicle performance camera. Refer to Vehicle Performance Camera Replacement .
  2. Remove the mobile telephone and vehicle location antenna. Refer to Mobile Telephone and Vehicle Location Antenna Replacement .
  3. Remove the inside air moisture and windshield temperature sensor. Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement .
1 Front View Driver Information Camera Bracket
Procedure
Slide the bracket towards the drivers side to disengage tabs, gently pull from windshield.
