Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

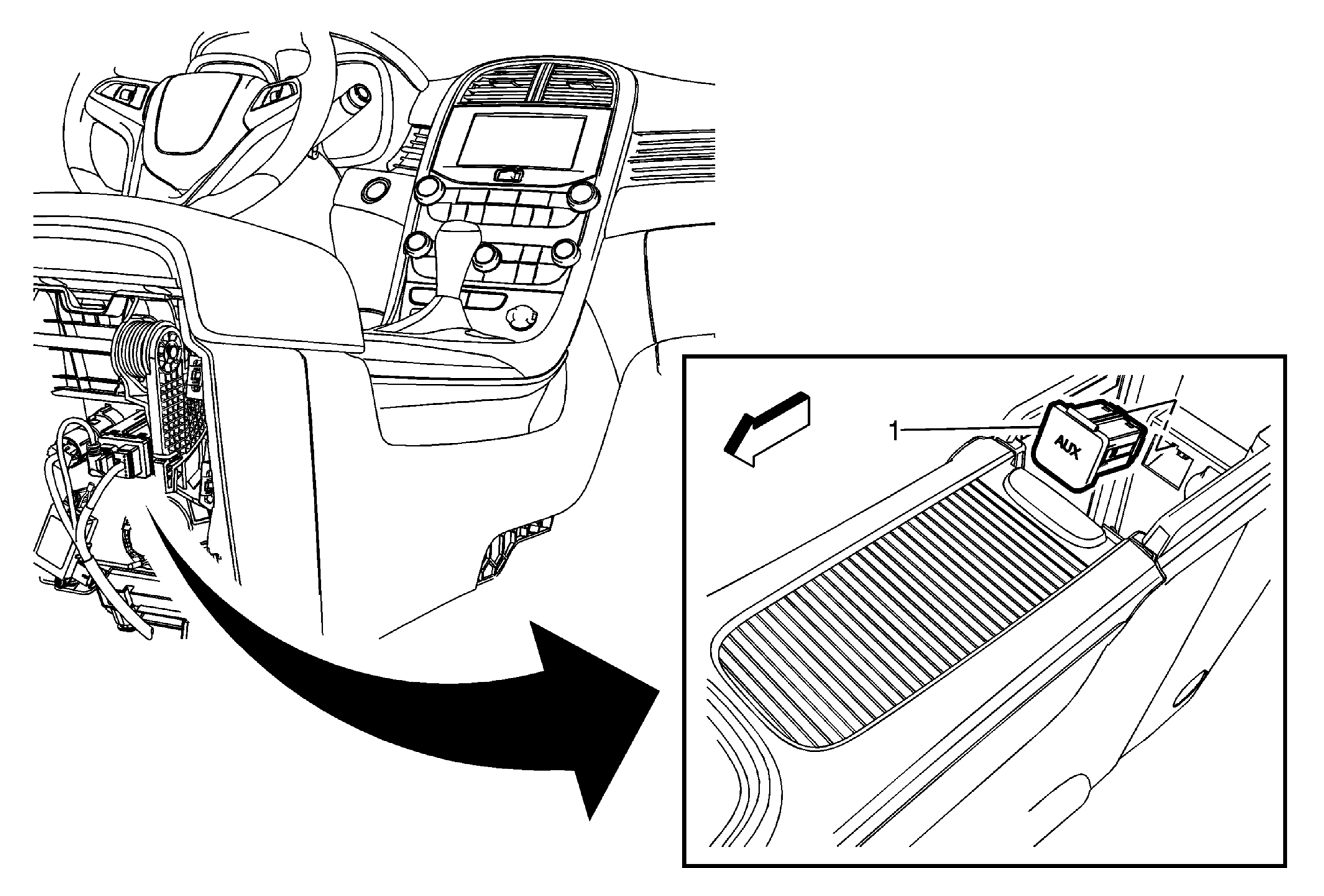

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .
1	Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Procedure Disconnect the electrical connector. Open the armrest cover. Depress the tabs on the receptacle and push forward to remove.

Callout

Component Name

Preliminary Procedure
Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement .

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Procedure

Disconnect the electrical connector.
Open the armrest cover.
Depress the tabs on the receptacle and push forward to remove.
