Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

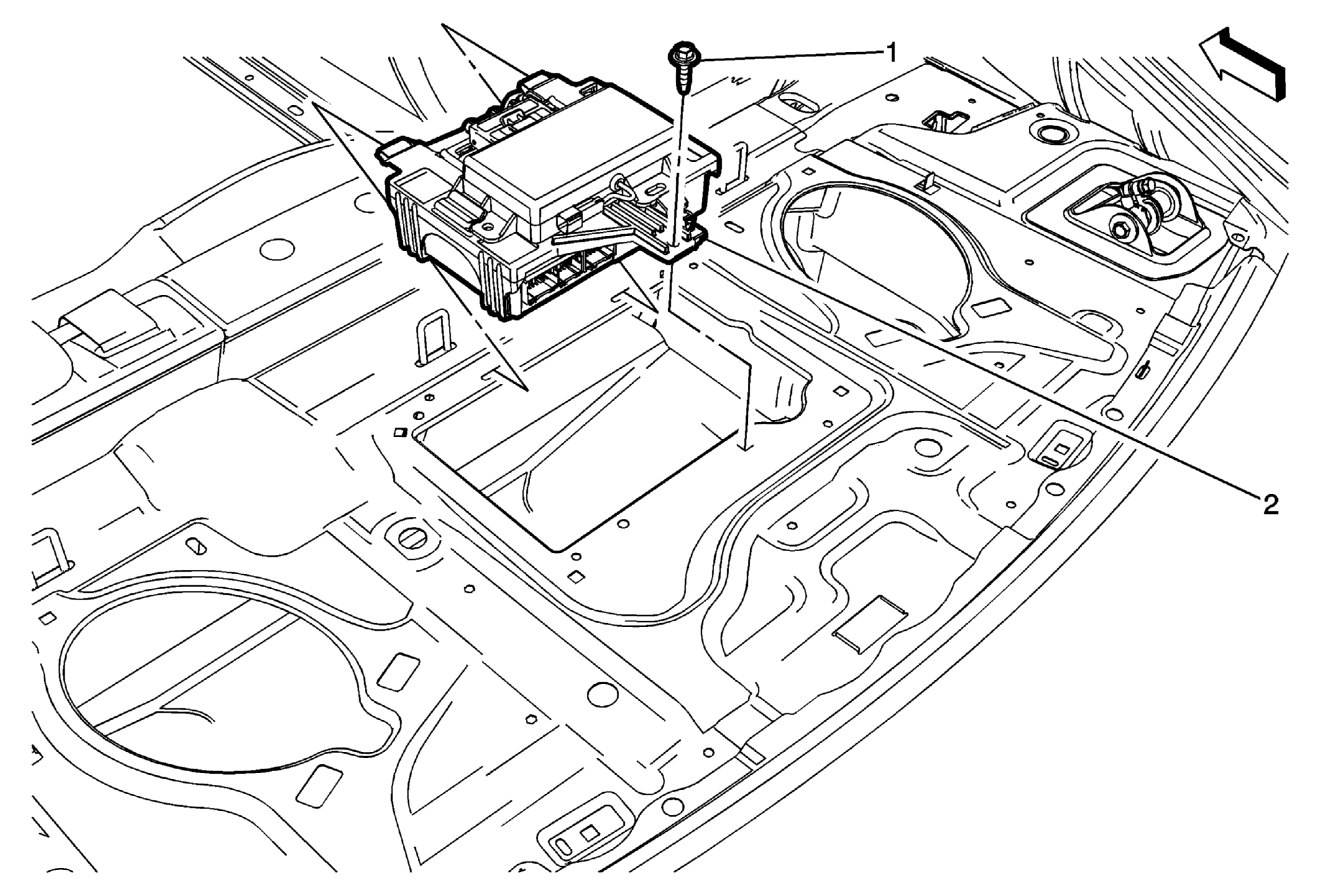

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) .
1	Communication Interface Module Bracket Fastener CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) .

Communication Interface Module Bracket Fastener

CAUTION:

Refer to Fastener Caution .

Communication Interface Module Bracket

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
