Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

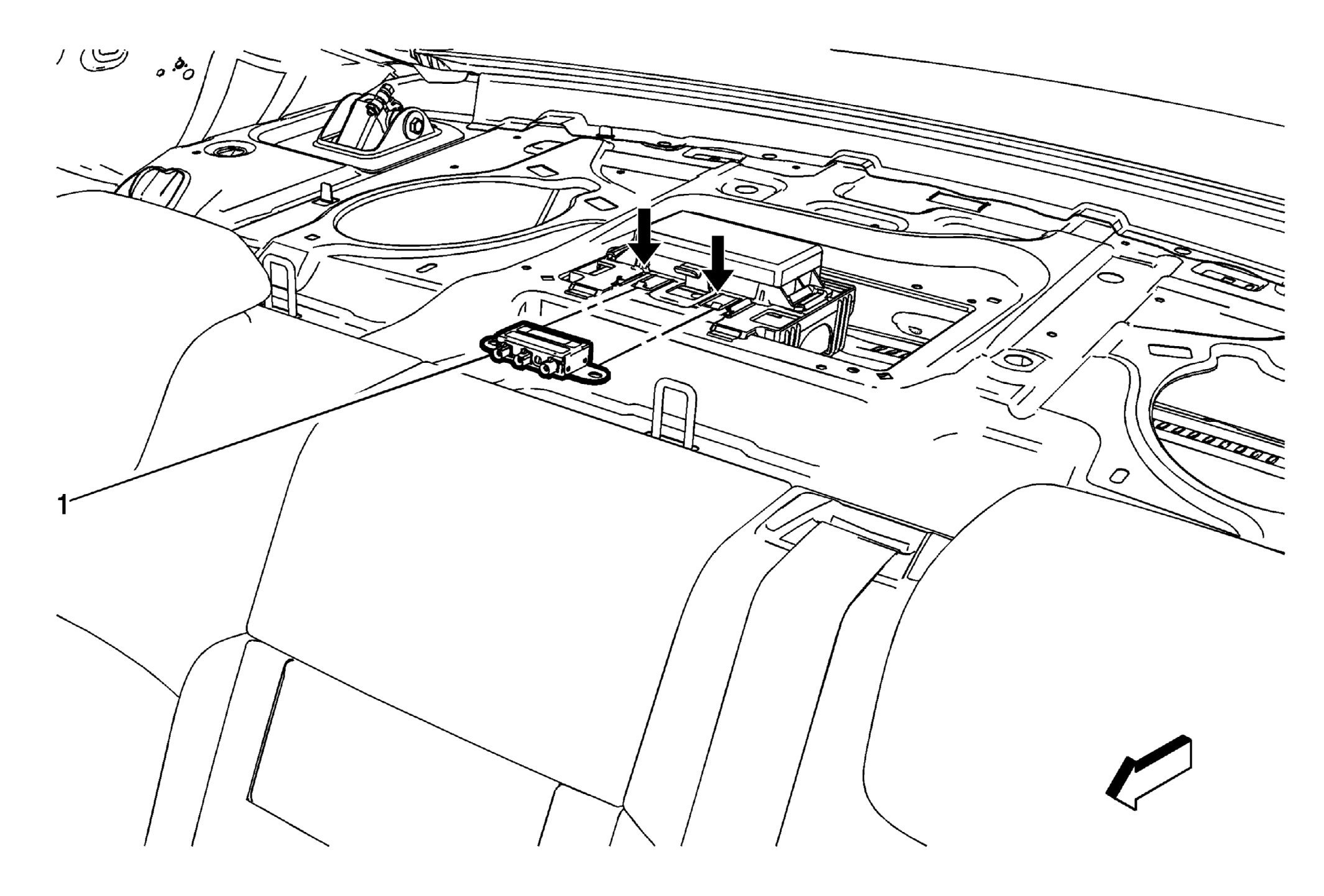

Fig 1: Navigation Signal Splitter
GM2700944Courtesy of GENERAL MOTORS COMPANY
Navigation Signal Splitter Replacement

Callout Component Name
Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) .
1 Navigation Signal Splitter Assembly

Procedure

  1. Disconnect the electrical connectors.
  2. Unsnap the navigation signal splitter from the bracket.
