Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

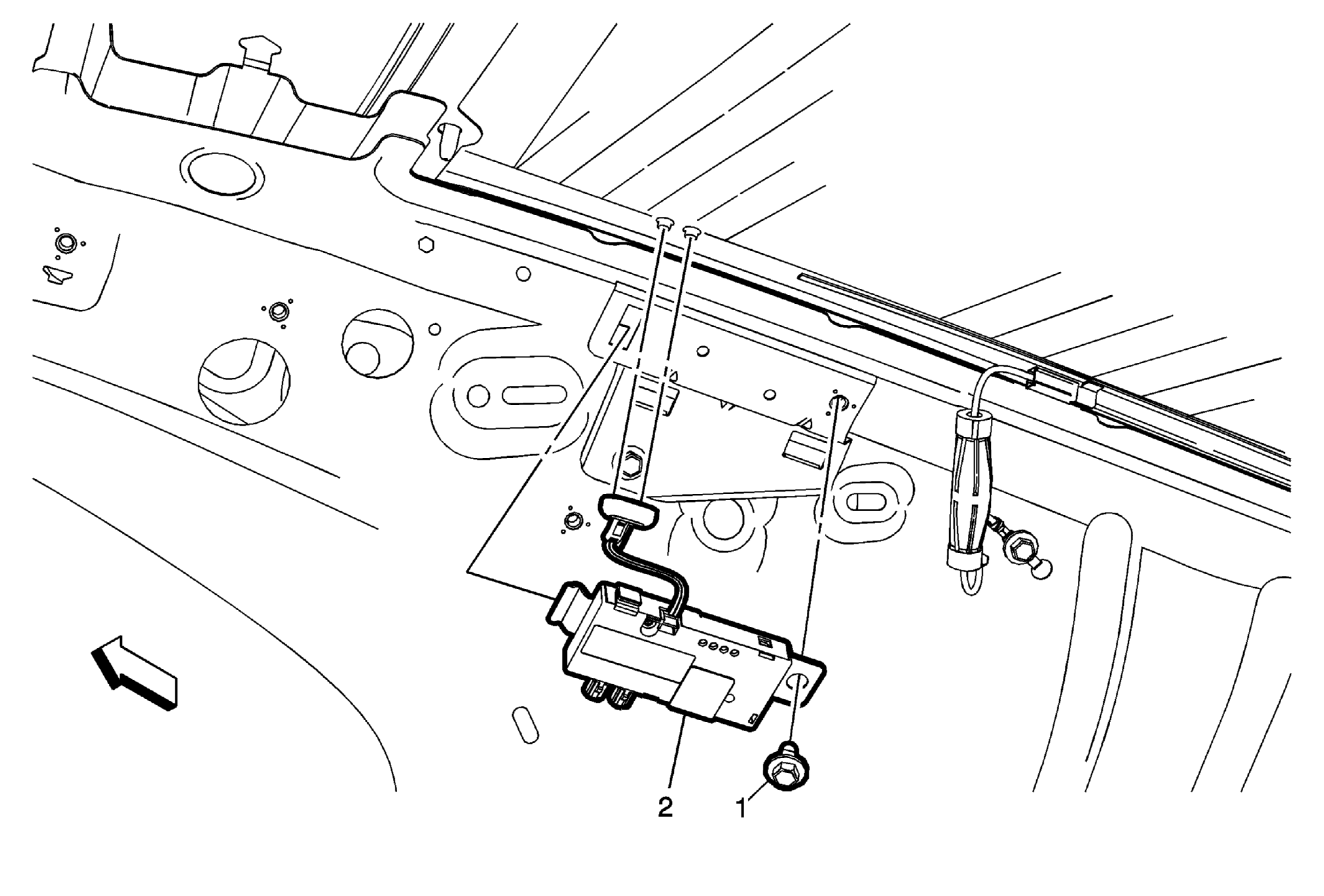

Fig 1: Radio Antenna Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right quarter trim panel. Refer to Quarter Trim Panel Replacement .
1	Radio Antenna Module Fastener CAUTION: Refer to Fastener Caution . Tighten 8 (71 lb in)
2	Radio Antenna Module Procedure Disconnect the electrical connection. Unsnap the wire from the glass. NOTE: When installing the electrical connector to the glass, ensure the connector side of tab is toward the outside of the vehicle.

Callout

Component Name

Preliminary Procedure
Remove the right quarter trim panel. Refer to Quarter Trim Panel Replacement .

Radio Antenna Module Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
8 (71 lb in)

Radio Antenna Module

Procedure

Disconnect the electrical connection.
Unsnap the wire from the glass.

NOTE:

When installing the electrical connector to the glass, ensure the connector side of tab is toward the outside of the vehicle.
