Auxiliary Inputs (without KTA)
WARNING:
This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

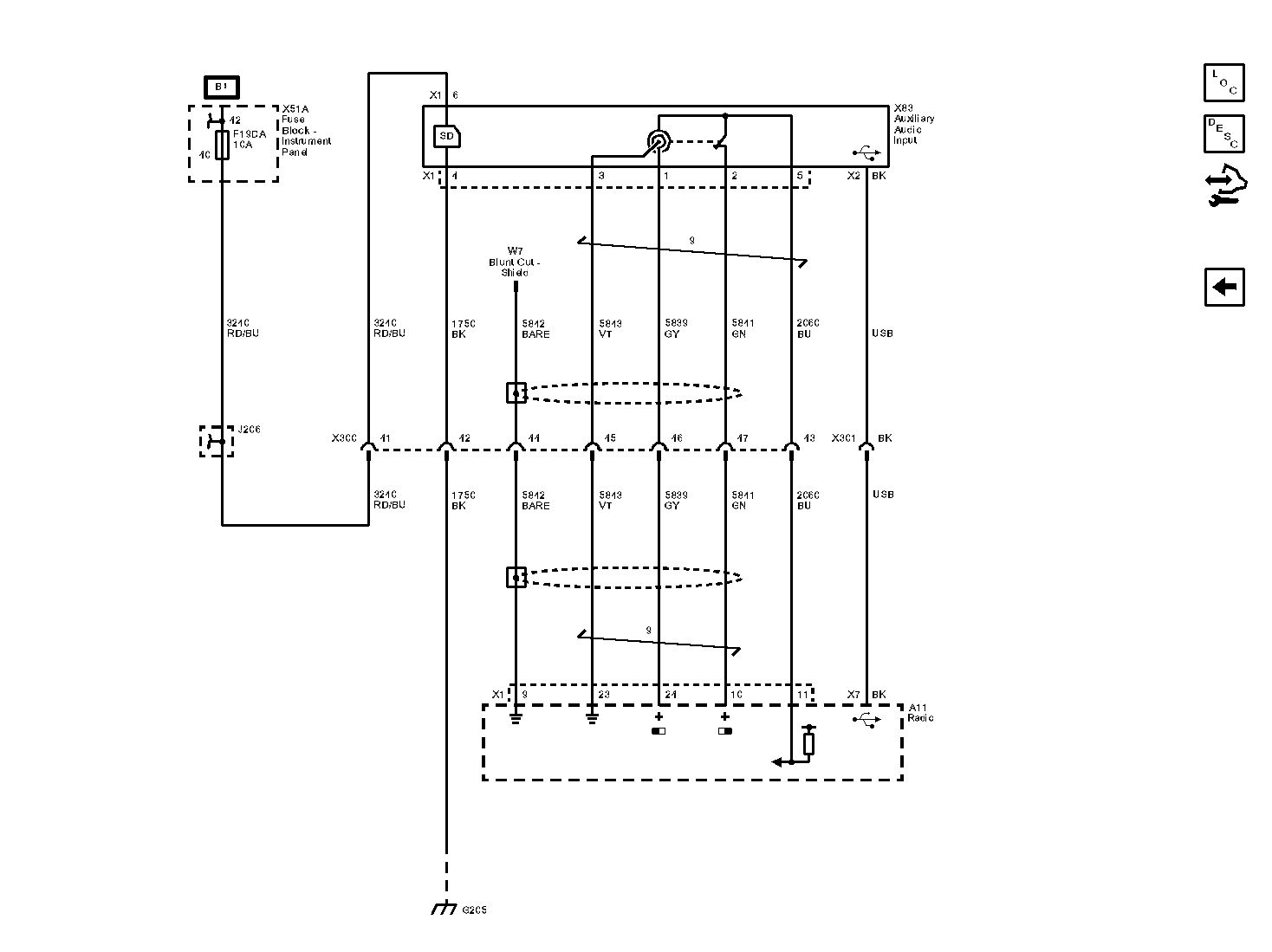

Fig 1: Auxiliary Inputs Wiring Schematic (without KTA)
Courtesy of GENERAL MOTORS COMPANY
