Passive Entry (ATH) and Passive Start (BTM)

WARNING: This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

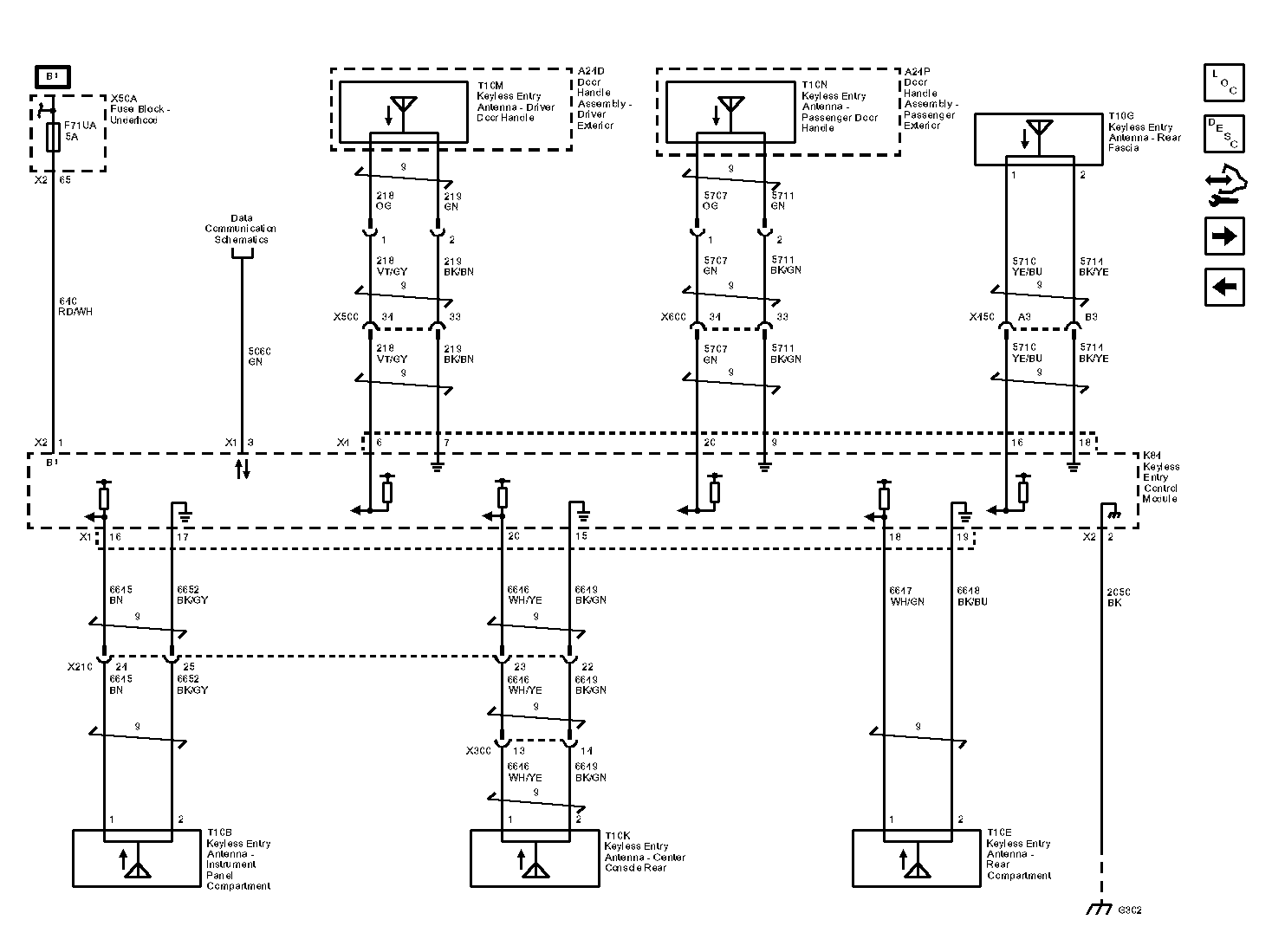

Fig 1: Passive Entry (ATH) & Passive Start (BTM) Wiring Schematic
GM3420118Courtesy of GENERAL MOTORS COMPANY
