Fuel Pump Flow Control Module Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

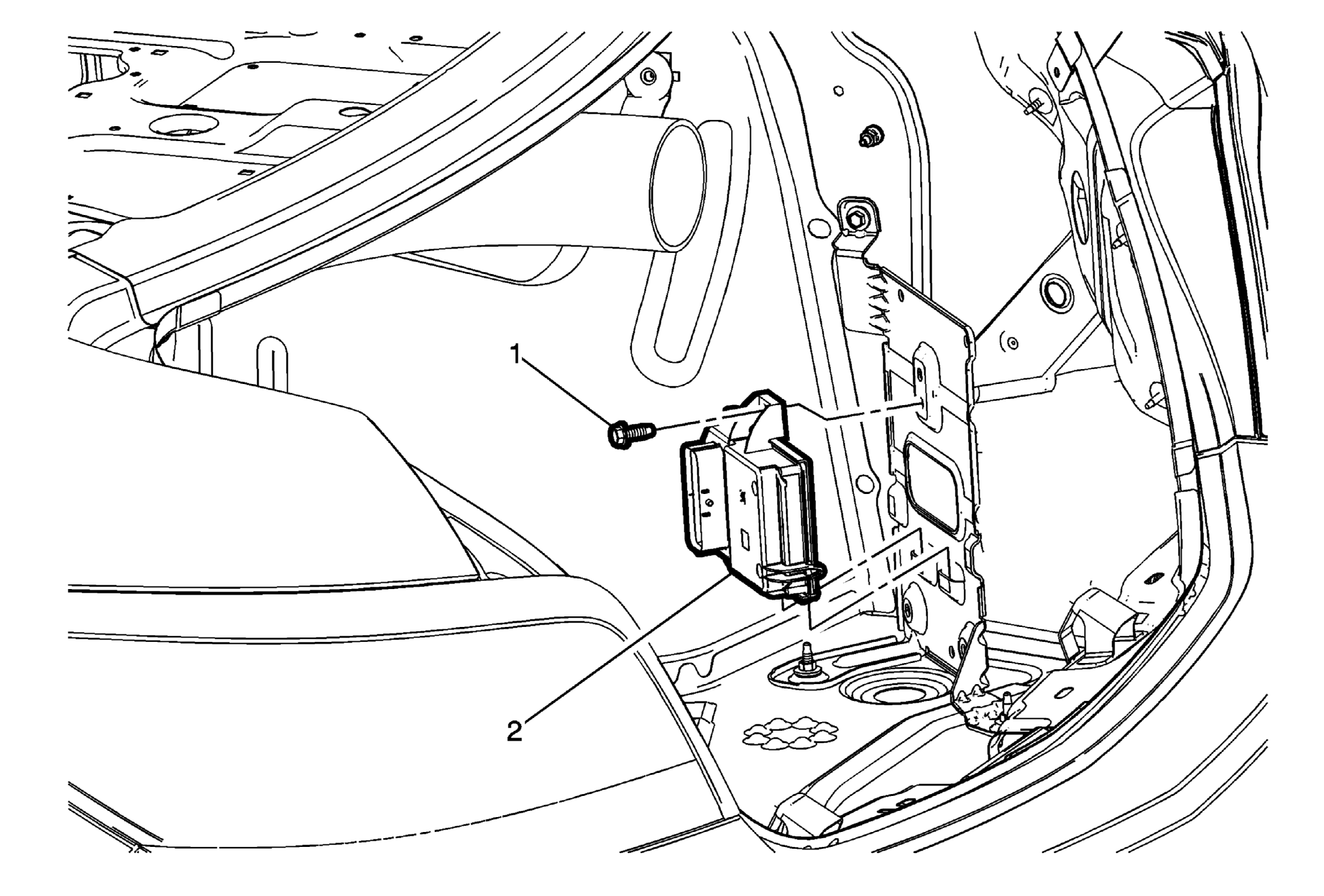

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Pump Flow Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the passenger rear side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (without HP6) , Rear Compartment Side Trim Panel Replacement (HP6, Left Side) , Rear Compartment Side Trim Panel Replacement (HP6, Right Side) .

Fuel Pump Flow Control Module Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Fuel Pump Flow Control Module

Procedure

Disconnect the electrical connector.
If replacing, reprogram the module. Refer to Control Module References .
