Side Object Detection (UFT)

WARNING: This page is about a different variant/trim than selected.

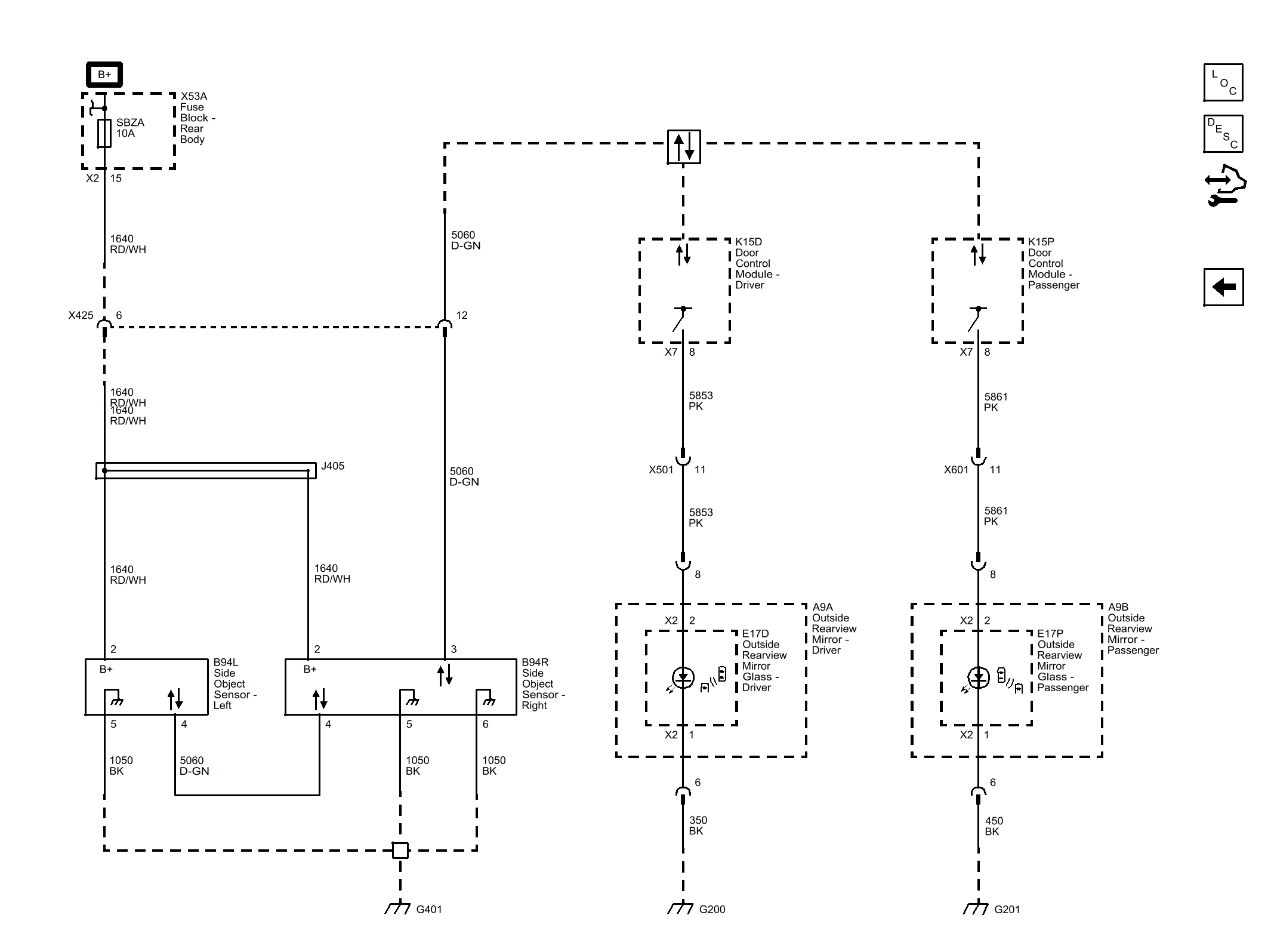

Fig 1: Side Object Detection (UFT)
GM3344885Courtesy of GENERAL MOTORS COMPANY
