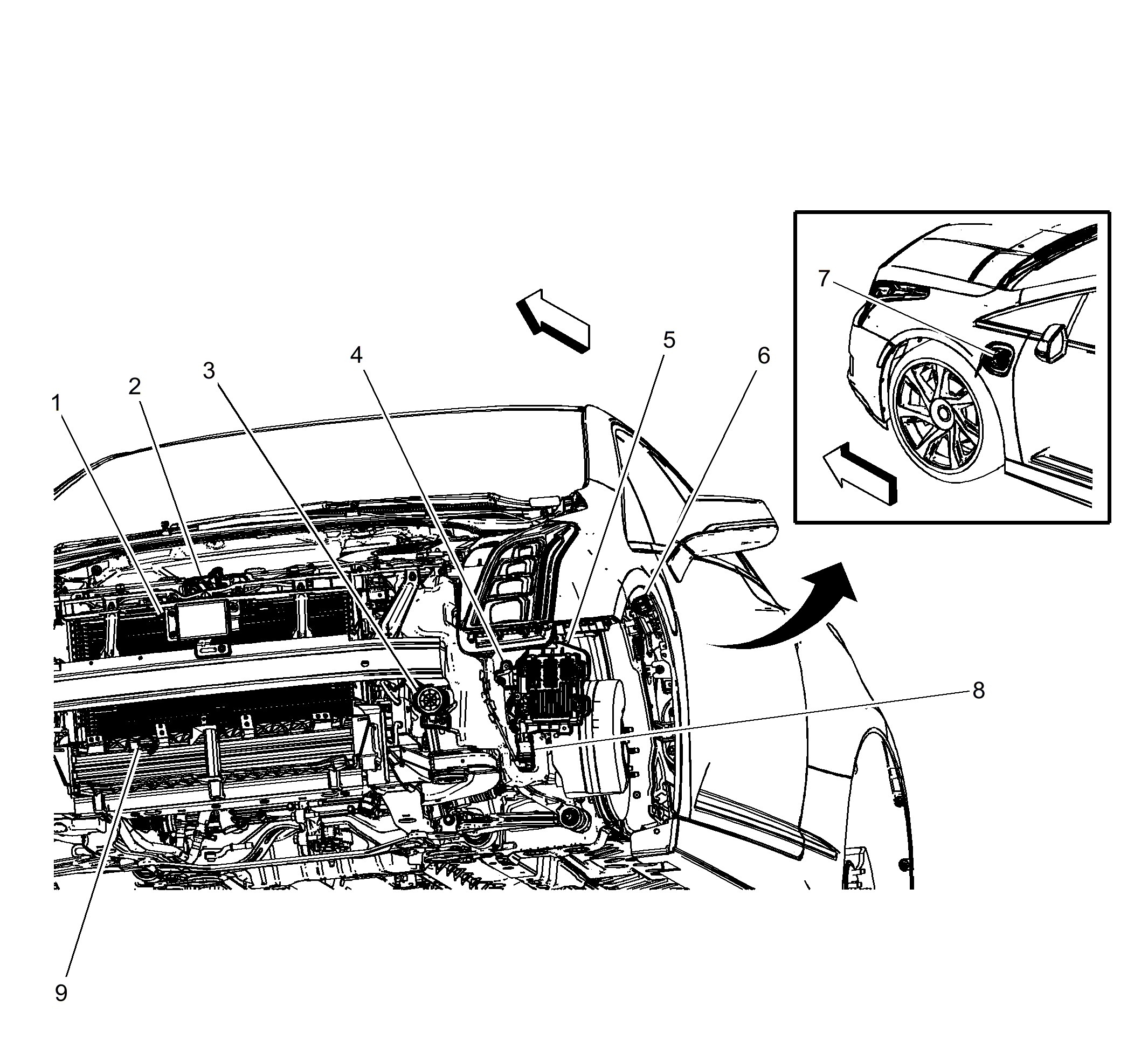

Front of Vehicle Components - Left
Front of Vehicle Components - Left
| Items |
|---|
| 1: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 2: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 3: P48 Pedestrian Alert Sound Speaker P48 Pedestrian Alert Sound Speaker |
| 4: P12L Horn - Left P12L Horn - Left |
| 5: K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3 |
| 6: B197 Charge Port Door Position Switch B197 Charge Port Door Position Switch |
| 7: X98 Hybrid/EV Battery Charger Receptacle X98 Hybrid/EV Battery Charger Receptacle |
| 8: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 9: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
