Center Console Components (1 of 3)

Center Console Components (1 of 3)

Items
1:  S3 Transmission Shift Lever
2:  S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
3:  E32 Cigarette Lighter Receptacle
4:  X83 Auxiliary Audio Input
5:  X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console

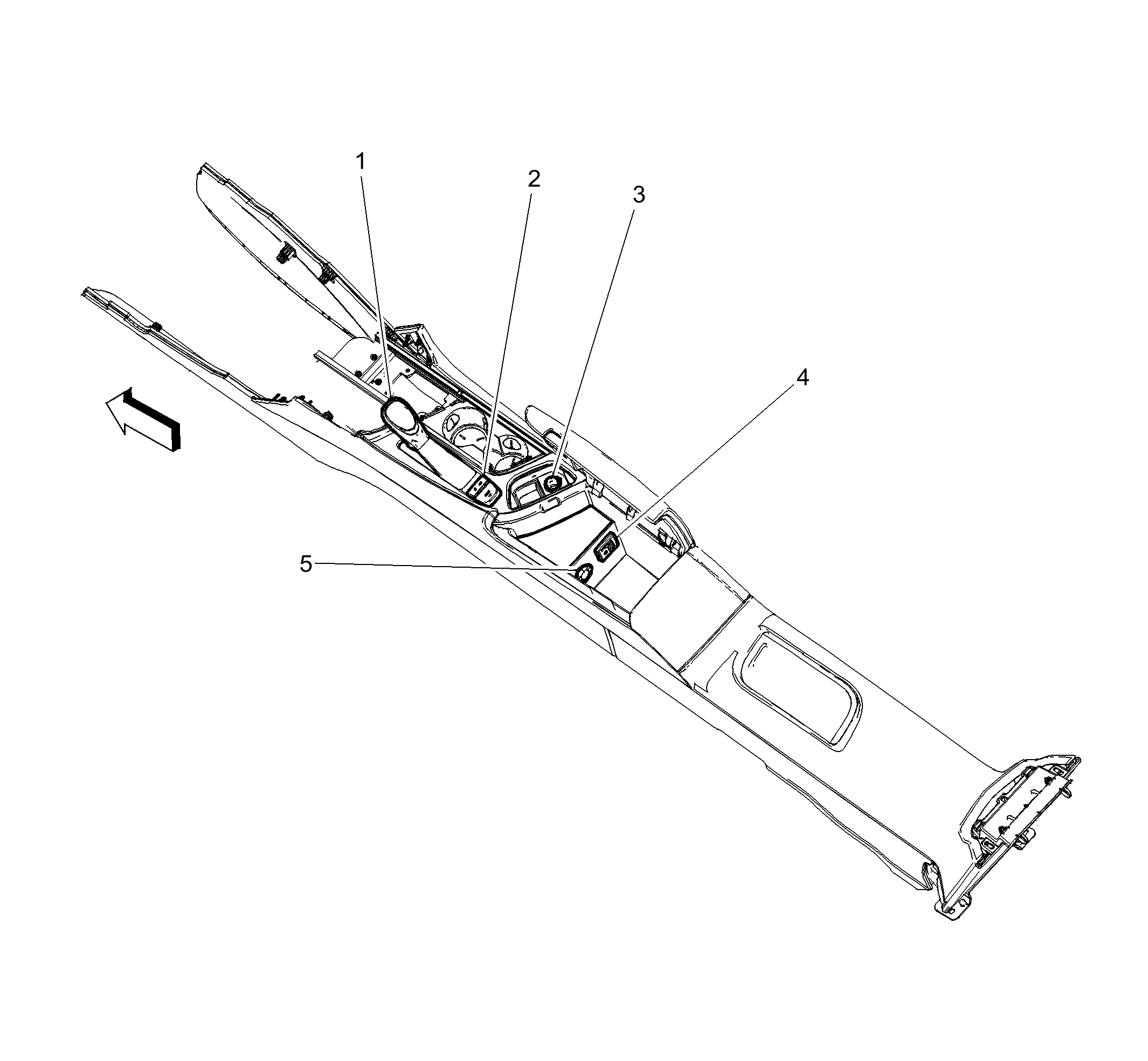

Fig 1: Center Console Components (1 of 3)
GM3617136Courtesy of GENERAL MOTORS COMPANY
