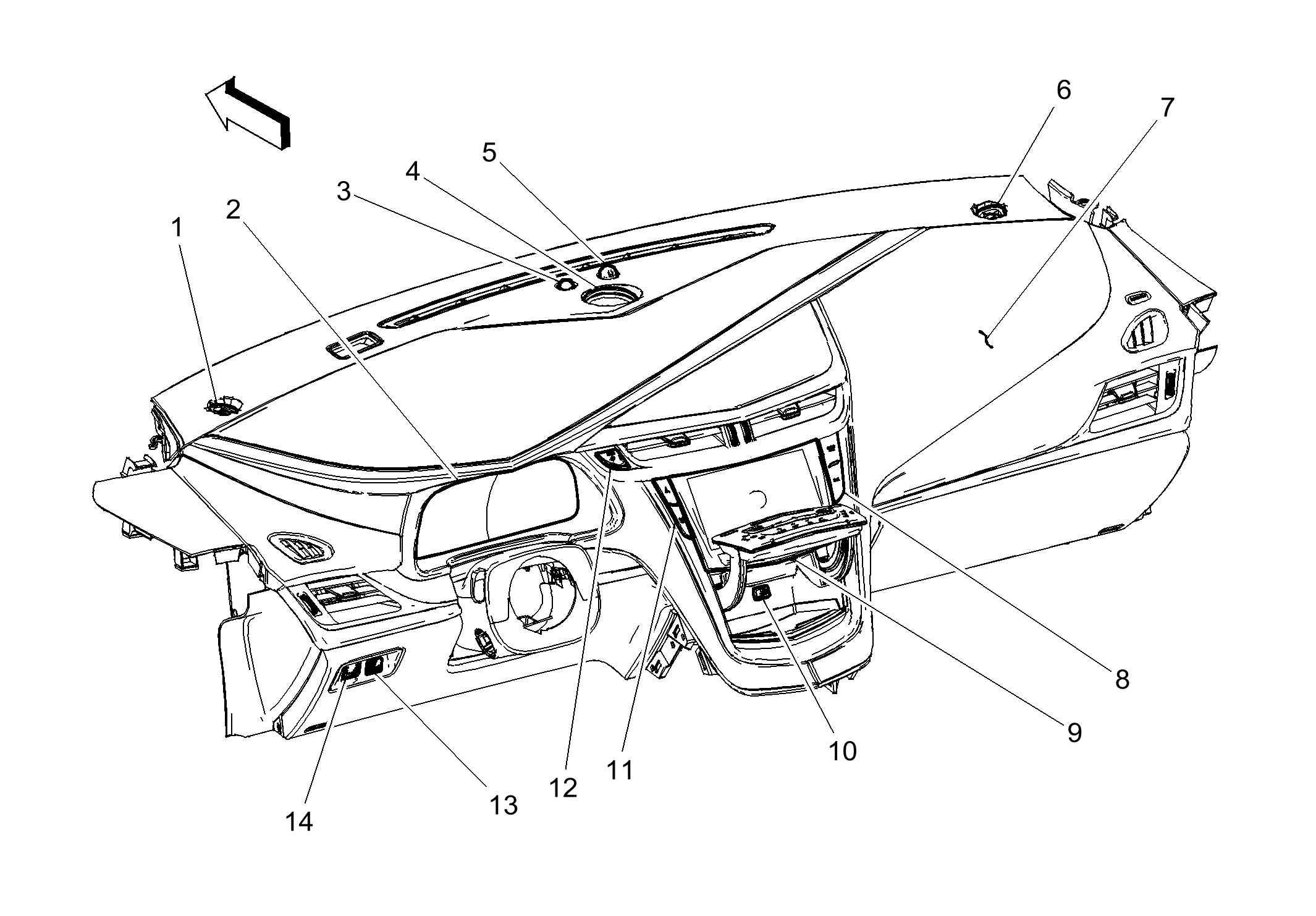

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Items |
|---|
| 1: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 2: P16 Instrument Cluster P16 Instrument Cluster |
| 3: P36 Battery State of Charge Indicator P36 Battery State of Charge Indicator |
| 4: P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel |
| 5: B10B Ambient Light/Sunload Sensor |
| 6: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 7: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 8: S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel |
| 9: P17 Info Display Module |
| 10: X92 USB Receptacle X92 USB Receptacle |
| 11: S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel |
| 12: S83 Vehicle On/Off Switch |
| 13: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 14: S91 Park Brake Control Switch S91 Park Brake Control Switch |
