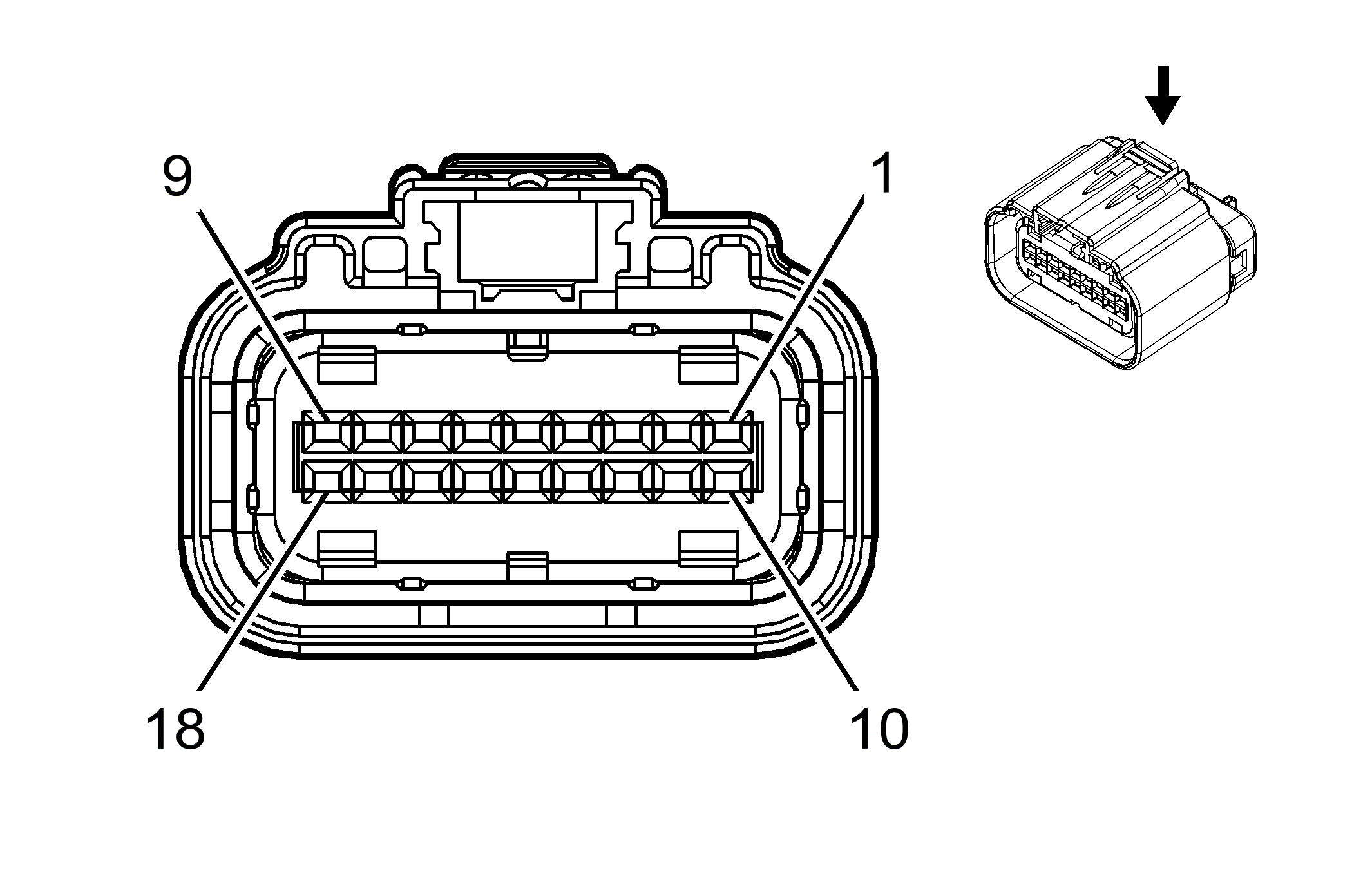

B129 Cruise Control Vehicle Distance Sensor Module

GM2904467

Connector Part Information

Harness Type:
OEM Connector: 13586512
Service Connector: 19300598
Description: 18-Way F 0.64 GET Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Pending	Pending	Pending	Not Available	Not Available	Not Available	Not Available

B129 Cruise Control Vehicle Distance Sensor Module

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	RD/YE	4340	Battery Positive Voltage	I	-
2	-	-	-	Not Occupied	-	-
3	0.5	BK	1050	Ground	I	-
4	-	-	-	Not Occupied	-	-
5	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	I	-
6	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	I	-
7	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	I	-
8	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	I	-
9	-	-	-	Not Occupied	-	-
10	0.5	WH/BU	5986	Serial Data Communication Enable	I	-
11-13	-	-	-	Not Occupied	-	-
14	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	I	-
15	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	I	-
16-18	-	-	-	Not Occupied	-	-
