K84 Keyless Entry Control Module X3
|
|

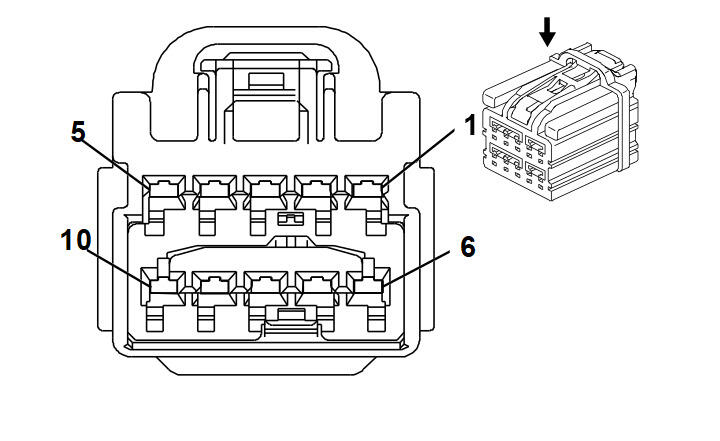

Connector Part Information
- Harness Type:
- OEM Connector: 19148982
- Service Connector: 22708788
- Description: 10-Way F Kaizen YESC Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
K84 Keyless Entry Control Module X3
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1-3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.75 |
YE/GN |
3583 |
Co Driver Door Unlatch Motor Unlatch Control |
I |
- |
| 5 |
0.75 |
VT/BU |
6666 |
Driver Door Unlatch Motor Unlatch Control |
I |
- |
| 6-8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.75 |
GY/BK |
3579 |
Co Driver Door Unlatch Motor Unlatch Return |
I |
- |
| 10 |
0.75 |
GY |
3578 |
Driver Door Unlatch Motor Unlatch Return |
I |
- |
