Control Solenoid Valve Assembly
Control Solenoid Valve and Transmission Control Module Assembly Solenoid Performance Test

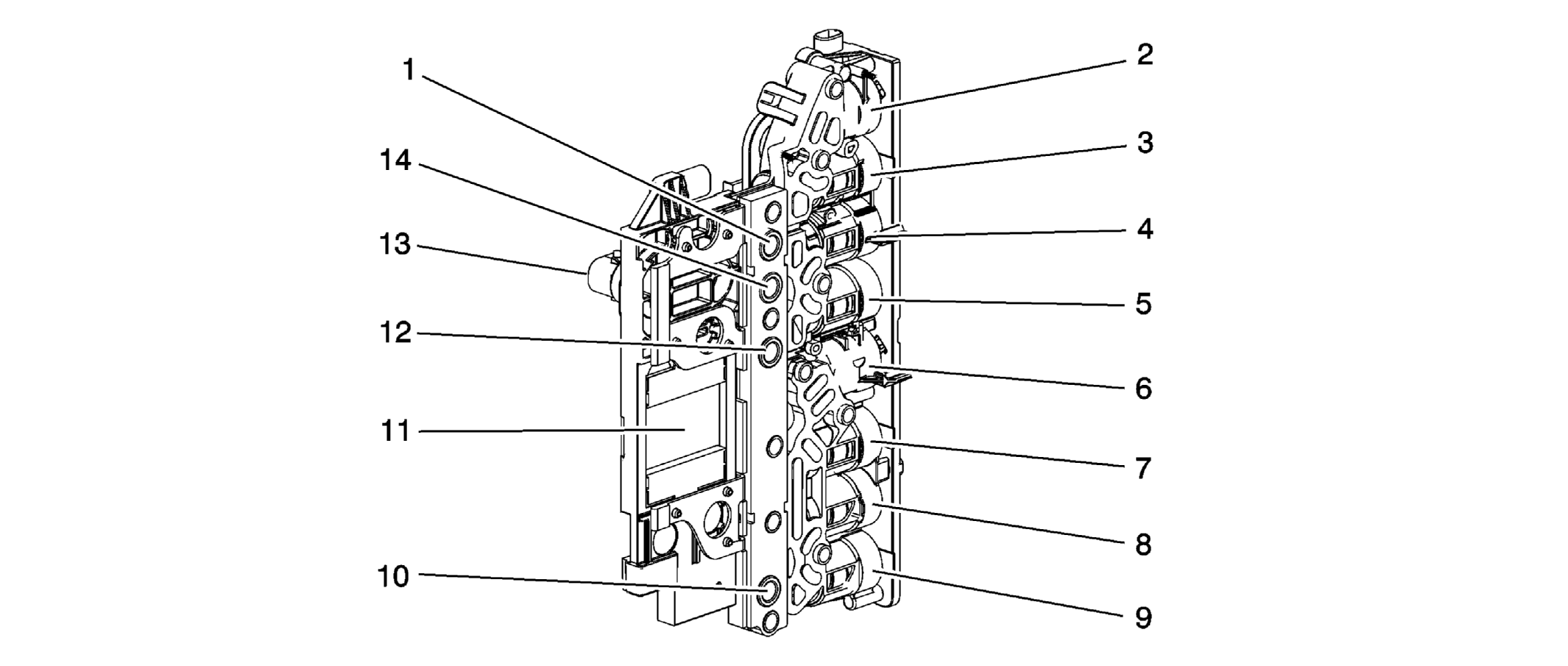

| Callout | Component Name | DTC/Symptom Associated with Component |
|---|---|---|
| 1 | Transmission Fluid Pressure Switch 4 | P0756, P0757 |
| 2 | Shift Solenoid 2 | P0756, P0757, P0976, P0977, Possible Engine Unavailable |
| 3 | Pressure Control Solenoid 3 | P0796, P0797, P079A, P07A3, P0969, P0970, P0971 |
| 4 | Pressure Control Solenoid 6 - Not Used, may not be installed. Ensure the air feed on the test plate is temporarily plugged. Refer to Solenoid Testing Procedure. | No DTCs or symptoms associated with this component |
| 5 | Pressure Control Solenoid 5 | P2728, P2729, P2730, Bump during engine start/stop transition |
| 6 | Shift Solenoid 1 | P0751, P0752, P0973, P0974, Possible Engine Unavailable |
| 7 | Pressure Control Solenoid 2 | P0776, P0777, P079B, P07A5, P0965, P0966, P0967 |
| 8 | Pressure Control Solenoid 4 | P079C, P07A7, P2714, P2715, P2719, P2720, P2721 |
| 9 | Line Pressure Control Solenoid | P0961, P0962, P0963 |
| 10 | Transmission Fluid Pressure Switch 1 | P0751, P0752, P2714, P2715 |
| 11 | Transmission Control Module | P0601-P0606, P060B, P062F, P0634, P0667, P0668, P0669, P06AC, P06AD, P06AE, P16F3, P16F7, P16F8, P179B |
| 12 | Transmission Fluid Pressure Switch 3 | P0751, P0752, P0776, P0777 |
| 13 | X1 20 Pin Connector | P2534, P2535 |
| 14 | Transmission Fluid Pressure Switch 5 | P0796, P0797 |
