Front Side Door Window Control Switch Replacement

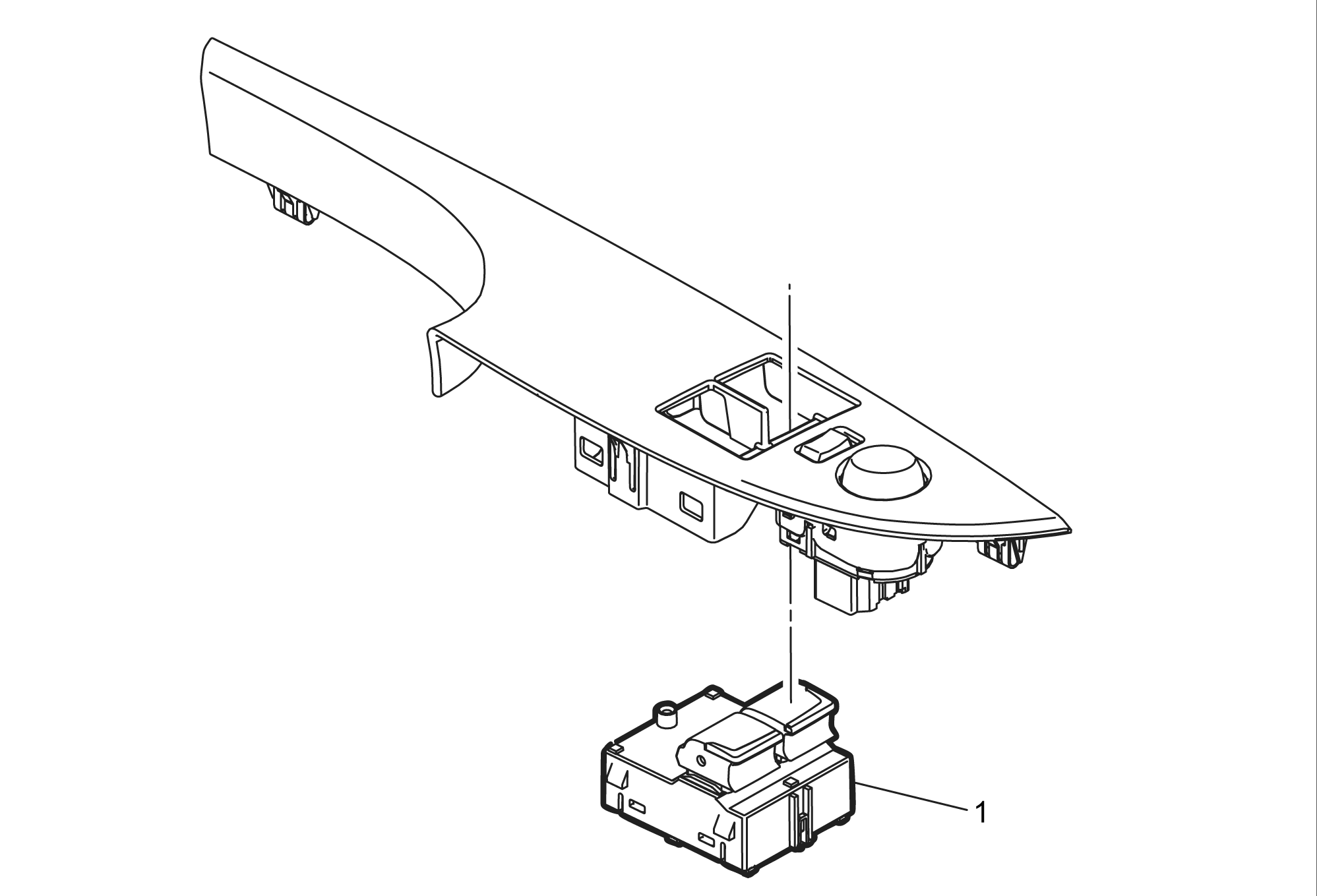

Fig 1: Front Side Door Window Control Switch

GM3610948

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Control Switch Replacement

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - drivers side door. Refer to Front Side Door Accessory Switch Mount Plate Replacement (Driver Side) , Front Side Door Accessory Switch Mount Plate Replacement (Passenger Side) .

1

Front Side Door Window Control Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
