Vehicle Stability Control System Switch Replacement

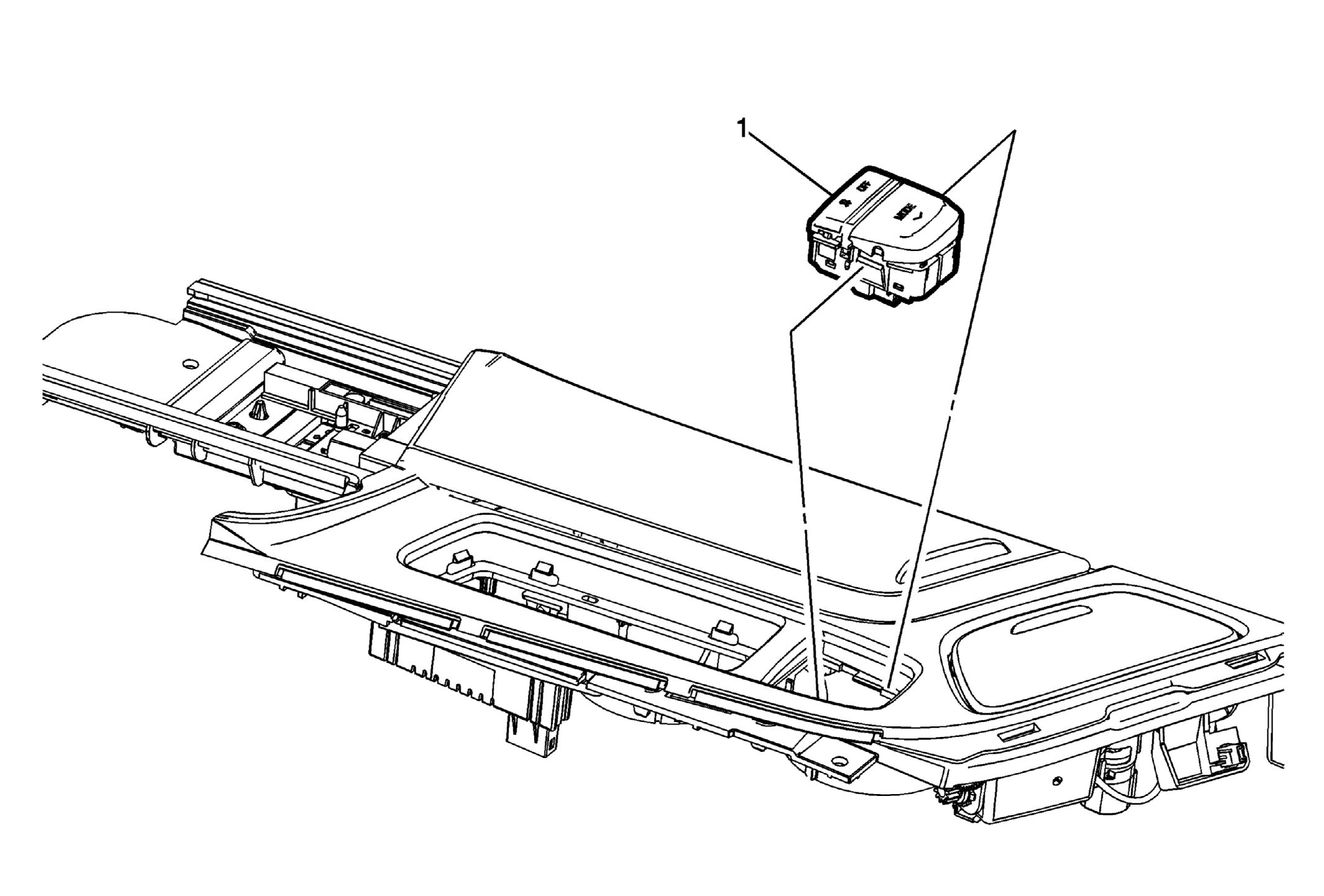

Fig 1: Vehicle Stability Control System Switch
GM3612641Courtesy of GENERAL MOTORS COMPANY
Vehicle Stability Control System Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the front floor console cup holder trim plate. Refer to Front Floor Console Cup Holder Trim Plate Replacement .
1 Vehicle Stability Control System Switch
Procedure
Using the appropriate tool, gently depress the tabs on the switch to remove.
