Battery Charger

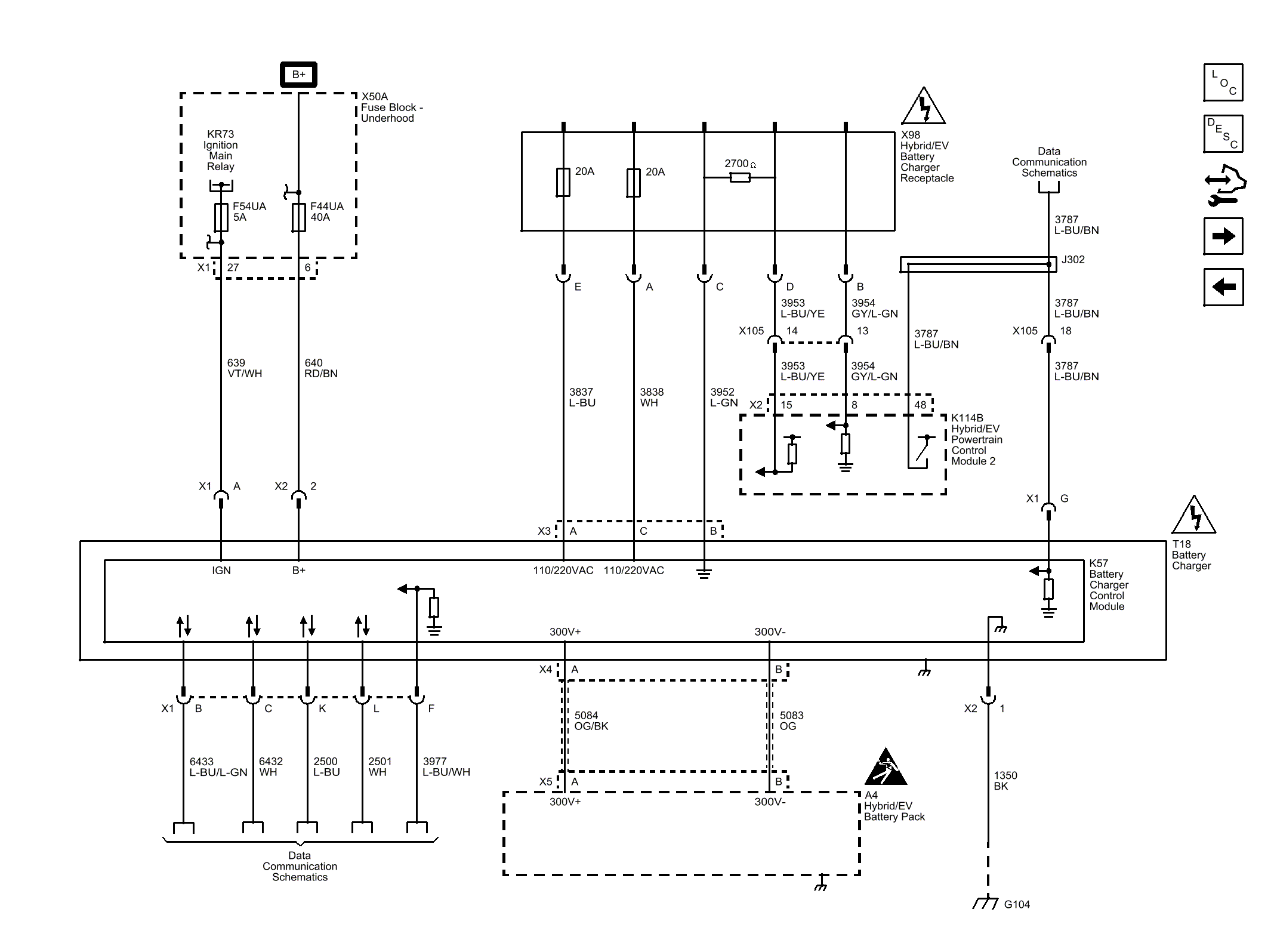

Fig 1: Battery Charger
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
