Accelerator Pedal Position Sensor Replacement

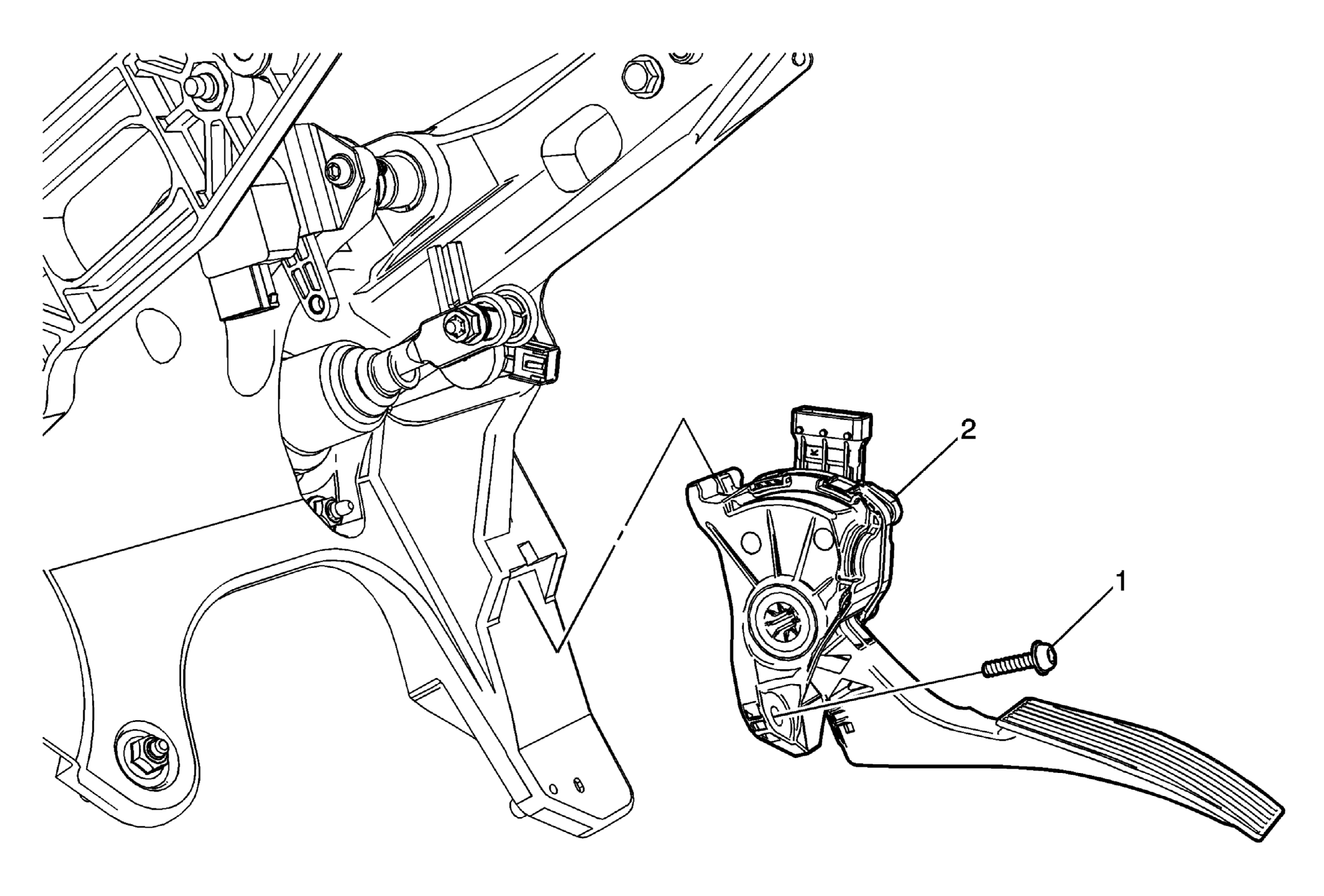

Fig 1: Accelerator Pedal Position Sensor
GM2379836Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal Position Sensor Replacement

Callout Component Name
1 Accelerator Pedal Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Accelerator Pedal Position Sensor
Procedure
Disconnect the electrical connector.
