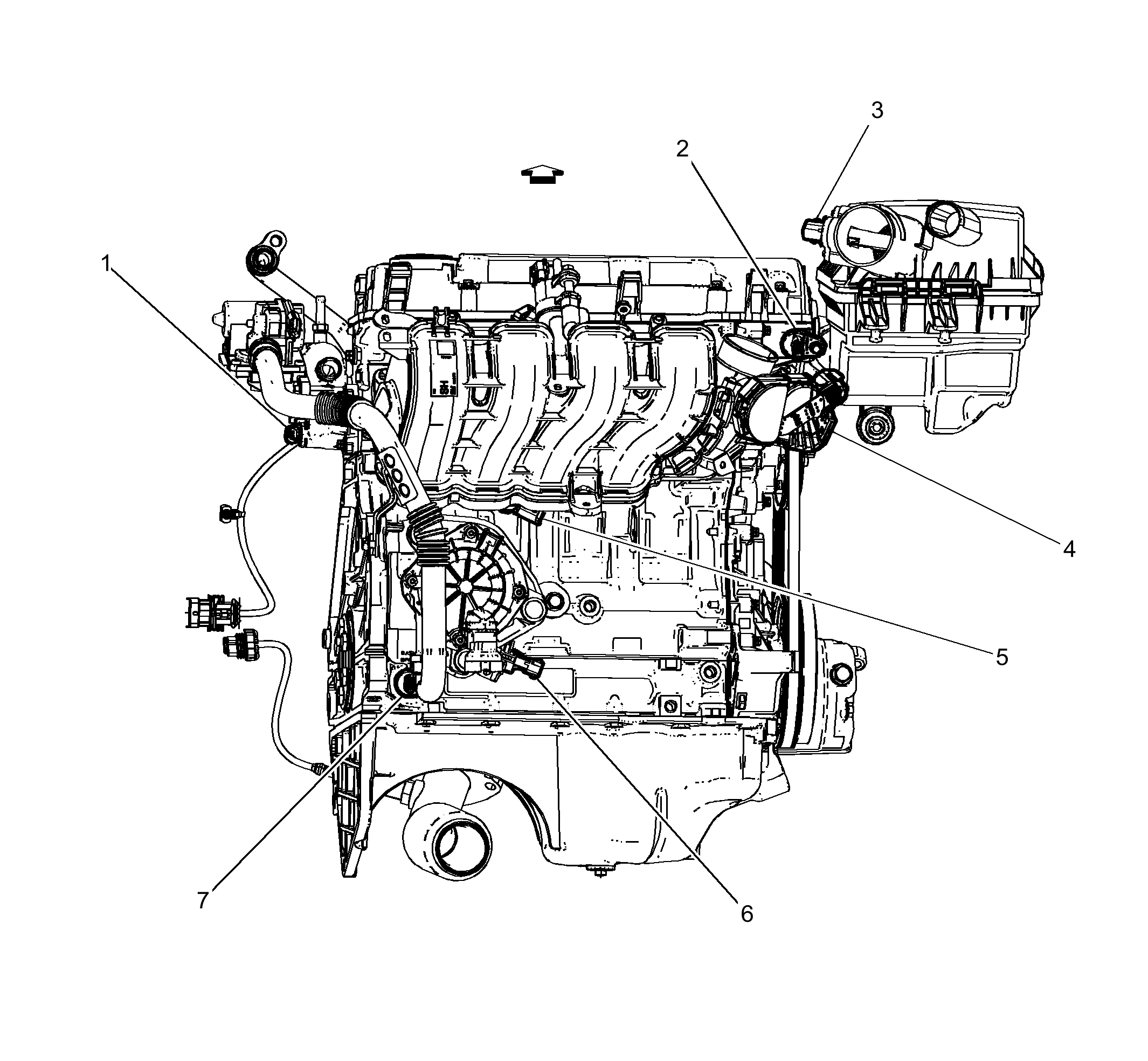

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 2: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 3: B75B Mass Air Flow/Intake Air Temperature Sensor B75B Multifunction Intake Air Sensor |
| 4: Q38 Throttle Body Q38 Throttle Body |
| 5: B68 Knock Sensor B68 Knock Sensor |
| 6: G21 Secondary Air Injection Pump G21 Secondary Air Injection Pump |
| 7: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
