Information Center Telltale Assembly Replacement (Escalade EXT)

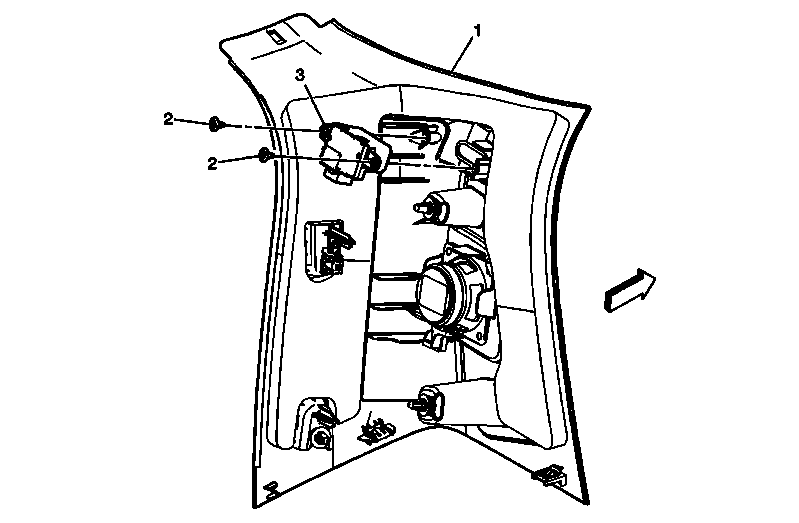

Fig 1: Information Center Telltale Assembly (Escalade EXT)

Courtesy of GENERAL MOTORS COMPANY

Information Center Telltale Assembly Replacement (Escalade EXT)

Callout	Component Name
1	Rear Corner Garnish Molding Assembly Refer to Body Rear Corner Garnish Molding Replacement - Right Side .
2	Information Center Telltale Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
3	Information Center Telltale Assembly TIP:  Disconnect the electrical connector.
