Reductant Sensor Module (Diesel) X2
WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
|

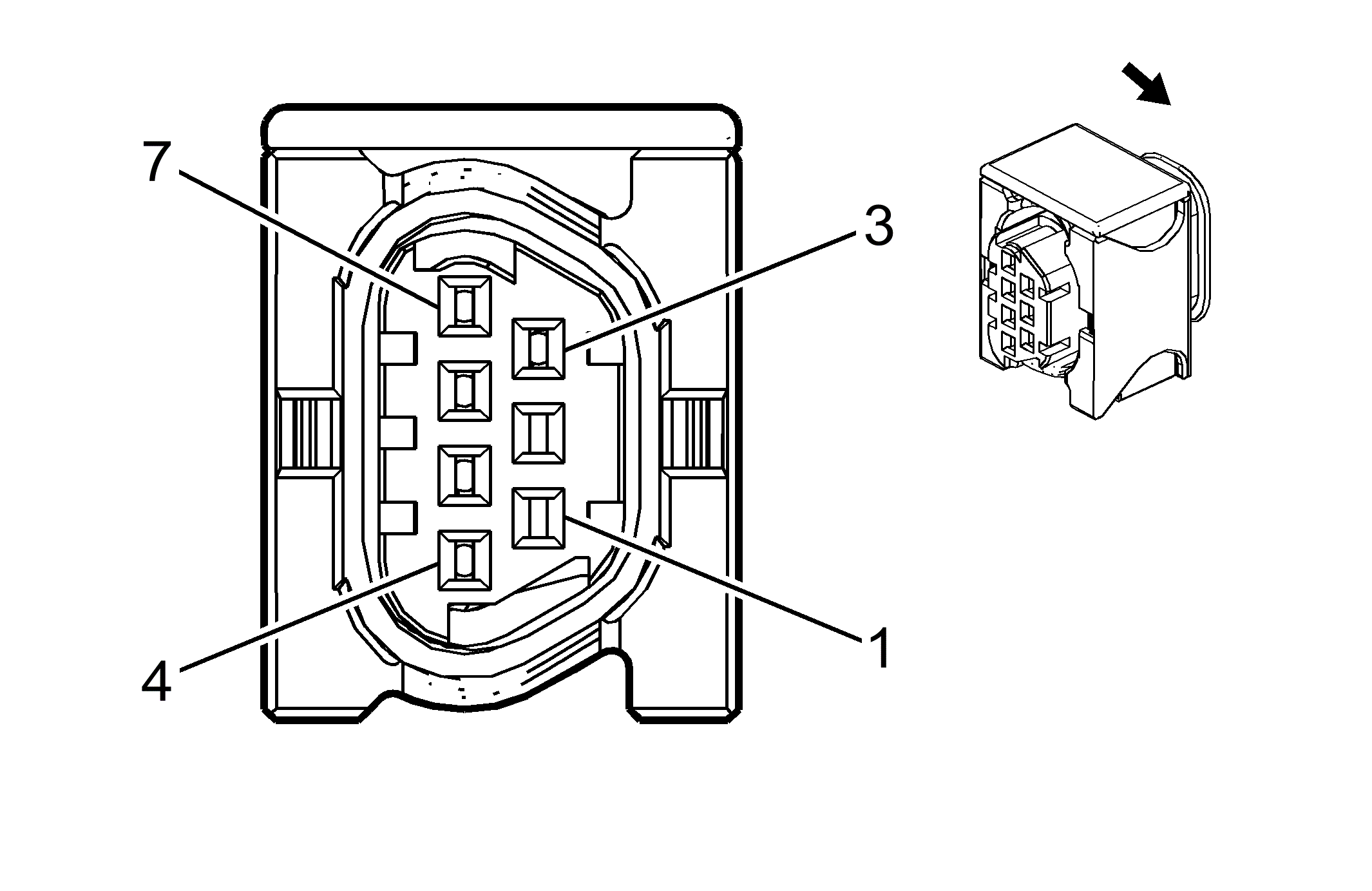

Reductant Sensor Module (Diesel) X2
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | WH | - | Temperature Sensor Signal Low |
| 3 | BK | - | Temperature Sensor Reference Voltage |
| 4 | GY | - | Level Sensor Common |
| 5 | RD | - | Level Sensor 1 Signal |
| 6 | BU | - | Level Sensor 2 Signal |
| 7 | YE | - | Level Sensor 3 Signal |
