Fuel Pump (Diesel with 31 Series with N2N)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

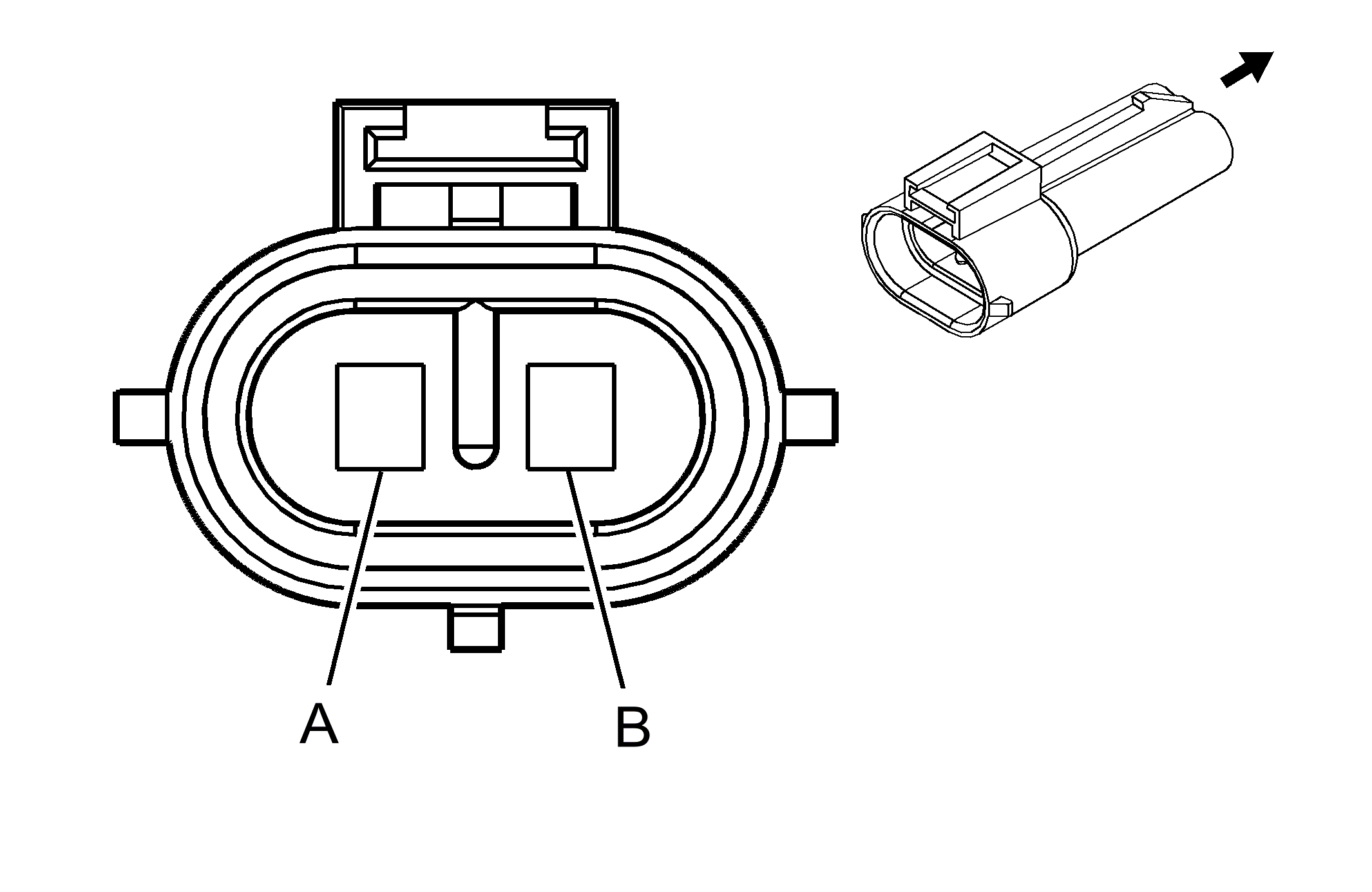

GM365945Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Chassis
  • OEM Connector: 12059450
  • Service Connector: 13580868
  • Description: 2-Way M Metri-Pack 280 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Pin A- 13581347
  • Terminated Lead: Pin B- Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-5 (PU)
  • Terminal/Tray: Pin A- 12048159/2
  • Terminal/Tray: Pin B- 12129497/1
  • Core/Insulation Crimp: 2/5
Fuel Pump (Diesel with 31 Series with N2N)

Pin Wire Circuit Function
A 1 GY 120 Fuel Pump Supply Voltage
B 2 BK 2150 Ground
