Alternative Fuel Injector Relay (LC8)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

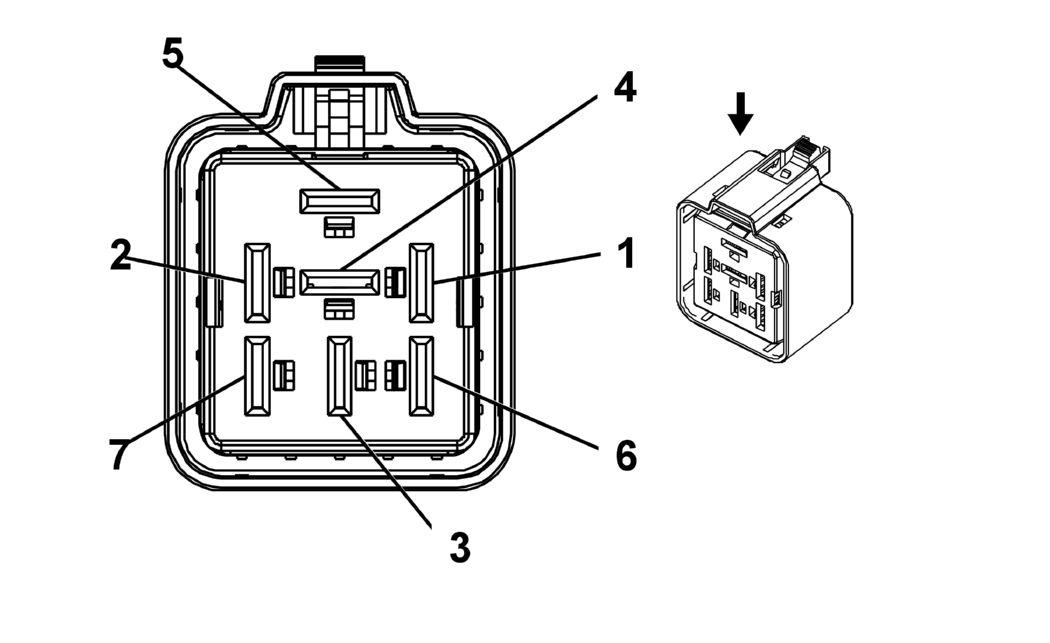

GM2684047Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: CNG Harness
  • OEM Connector: 60430141
  • Service Connector: 13587774
  • Description: 7-Way F 6.3 Series, Sealed (BK)
Terminal Part Information
  • Pins: 1, 2
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
  • Pins: 3, 5
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
Alternative Fuel Injector Relay (LC8)

Pin Wire Circuit Function
1 RD - Battery Positive Voltage
2 WH/GN - Control
3 GN - Switched Battery Positive Voltage
4 - - Not Used
5 RD - Battery Positive Voltage
6 - - Not Used
7 - - Not Used
