Brake Booster Vacuum Sensor (JL4 with 10 Series)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

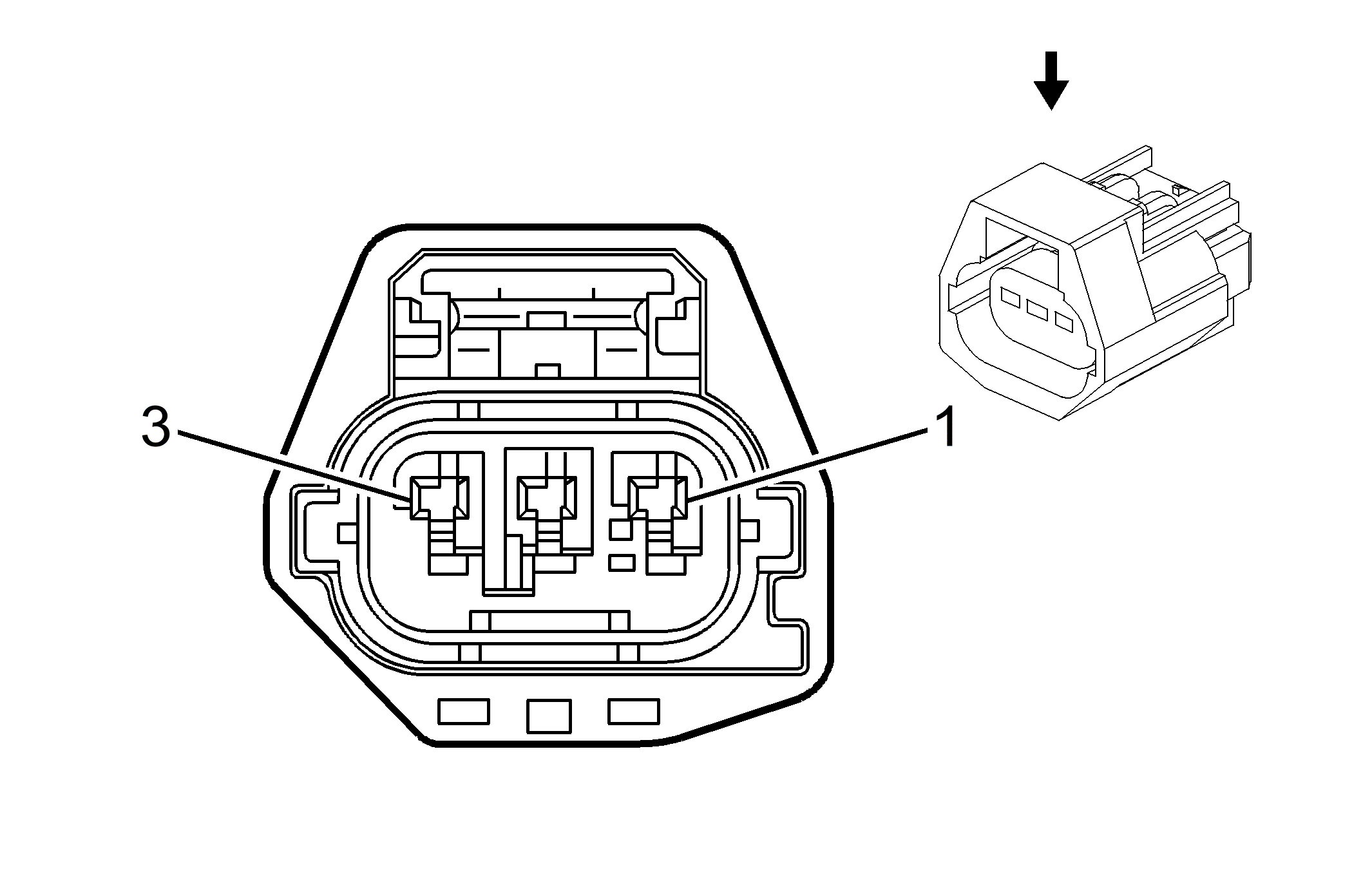

GM1710995Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Chassis
  • OEM Connector: 10769084
  • Service Connector: 19115666
  • Description: 3-Way F 3P 1.5 mm YESC Series Sealed (D-GY)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
Brake Booster Vacuum Sensor (JL4 with 10 Series)

Pin Wire Circuit Function
1 0.5 OG 6030 Brake Booster Vacuum Sensor Signal
2 0.5 YE/BK 6032 Low Reference
3 0.5 GY 6044 5-Volt Reference
