Camshaft Position (CMP) Sensor (Diesel)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

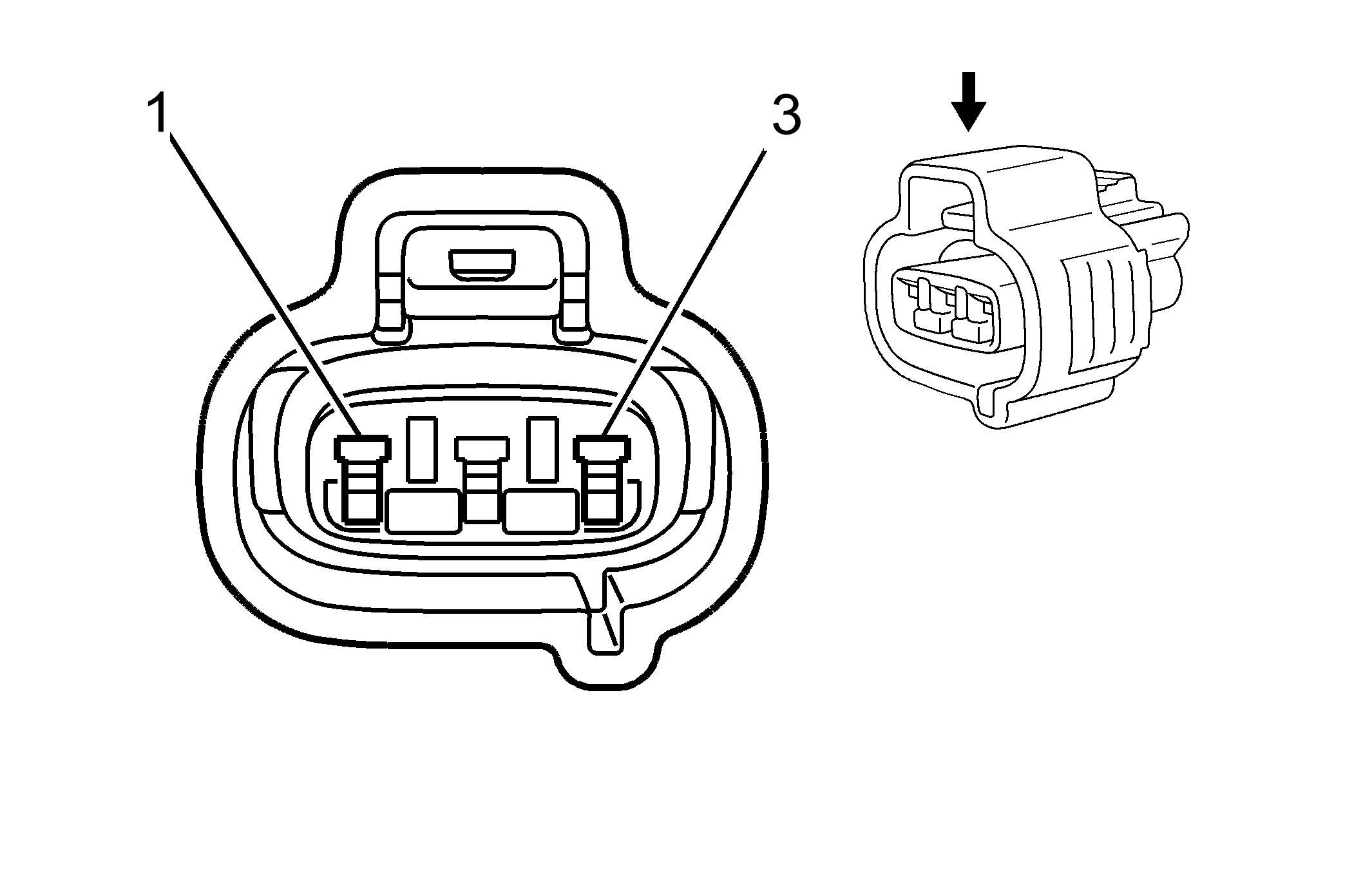

GM1366572Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness: Engine
  • OEM: 6248-5317
  • Service: 13576413
  • Description: 3-Way F Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 7116-4025/11
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-552/J-35616-18 (BK)
Camshaft Position (CMP) Sensor (Diesel)

Pin Wire Circuit Function
1 0.5 D-BU/WH 6265 CMP Sensor Signal
2 0.5 BN 6266 Low Reference
3 0.5 D-BU 6259 5-Volt Reference
