Outside Rearview Mirror - Driver (DL8 or DPN without AN3)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

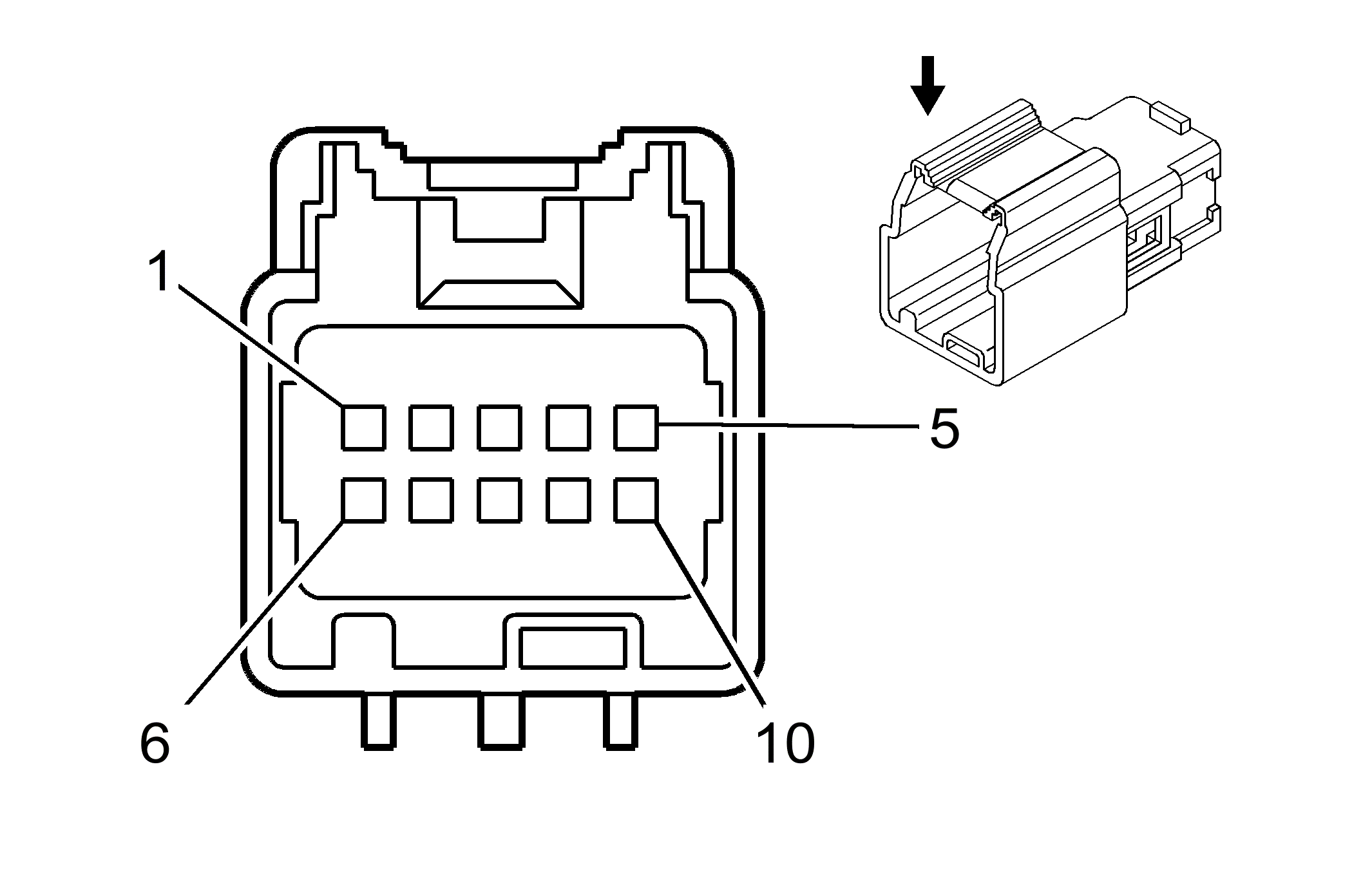

Connector Part Information

Harness Type: Left Front Door
OEM Connector: 13548147
Service Connector: 19149476
Description: 10-Way M AIT Series (BK)

Terminal Part Information

Terminated Lead: Pending
Release Tool: J-38125-215A
Diagnostic Test Probe: J-35616-65B (L-BU)
Terminal/Tray: SAITW-A03T-064/20
Core/Insulation Crimp: J/J

Outside Rearview Mirror - Driver (DL8 or DPN without AN3)

Pin	Wire	Circuit	Function
1	0.5 L-GN	89	Driver Mirror Motor Down Control (DL8 or DPN)
2	0.5 WH	81	Driver Mirror Motor Right Control (DL8 or DPN)
3	0.5 BK	1850	Ground (DL8 or DPN)
4	-	-	Not Used
5	0.5 L-BU/WH	1314	Left Front Turn Signal Lamp Supply Voltage (DL3 or DPN)
6	0.5 TN	329	Driver Mirror Motor Supply Voltage (DL8 or DPN)
7	0.5 OG	2267	Mirror Heating Element Supply Voltage (DL8 or DPN)
8-9	-	-	Not Used
10	0.5 BK	1850	Ground (DL3 or DPN)
