Navigation Power, Ground, Serial Data, and Signals (NQU)

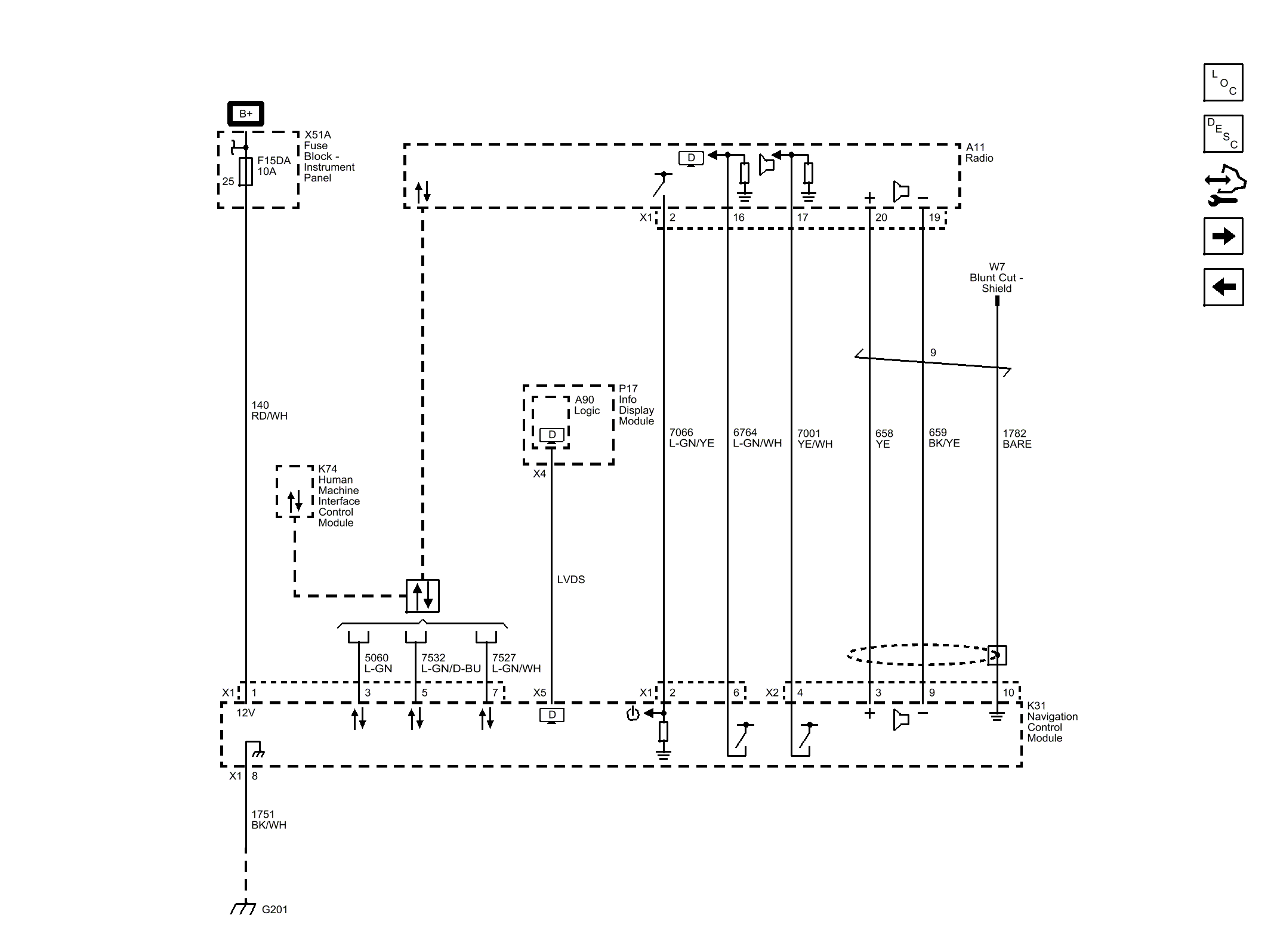

Fig 1: Navigation Power, Ground, Serial Data, and Signals Wiring Schematic (NQU)
GM3457432Courtesy of GENERAL MOTORS COMPANY
