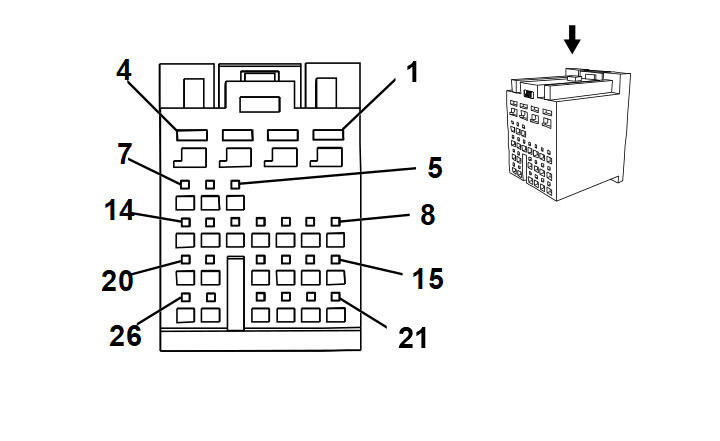

K9 Body Control Module X1 Connector End View

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575871	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	20	C	A
II	13327195	J-35616-35 (VT)	J-38125-12A	SNAC3-A021T-M0.64	20	J	J
III	13327200	J-35616-35 (VT)	J-38125-12A	SNAC-A081T-M2.8	20	A	D
IV	13327199	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	14	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1	BK/WH	1751	Signal Ground	I	-
2	2.5	RD/D-BU	2540	Battery Positive Voltage	III	-
3	0.5	RD/GY	2140	Battery Positive Voltage	IV	-
4	0.5	RD/BN	2240	Battery Positive Voltage	IV	-
5	0.35	WH	6816	Indicator Dimming Control	II	UD5
6	0.35	YE	7554	Park Lock Solenoid Soft Control	II	-
7	-	-	-	Not Occupied	-	-
8	0.35	BN/BK	5720	Ignition Mode Switch Accessory LED Signal	II	-
9	0.35	WH/BN	7555	Lighting Control Switch Signal	II	-
10	-	-	-	Not Occupied	-	-
11	0.35	L-GN/BN	306	Headlamp Switch Headlamps Off Signal Control	II	-
12-13	-	-	-	Not Occupied	-	-
14	0.35	GY/L-GN	328	Interior Lamp Defeat Switch Signal	II	-
15	-	-	-	Not Occupied	-	-
16	0.35	WH/VT	103	Headlamp Switch On Signal	II	-
17	-	-	-	Not Occupied	-	-
18	0.35	D-BU/VT	5904	Steering Column Lock Status Signal	II	ULS
19	0.5	BK/BN	5360	Brake Apply Sensor Low Reference	II	-
20	0.35	D-BU/BK	5719	Ignition Mode Switch Start LED Signal	II	-
21	0.35	GY	728	Security Indicator Control	II	-
22	0.35	L-GN/GY	13	Headlamp Switch Park Lamp Signal	II	-
23	-	-	-	Not Occupied	-	-
24	0.35	WH	2501	High Speed GMLAN Serial Data (-) (1)	II	-
25	0.35	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	II	-
26	0.35	YE/L-GN	3274	Remote Function Actuator Transmit Signal	II	-
