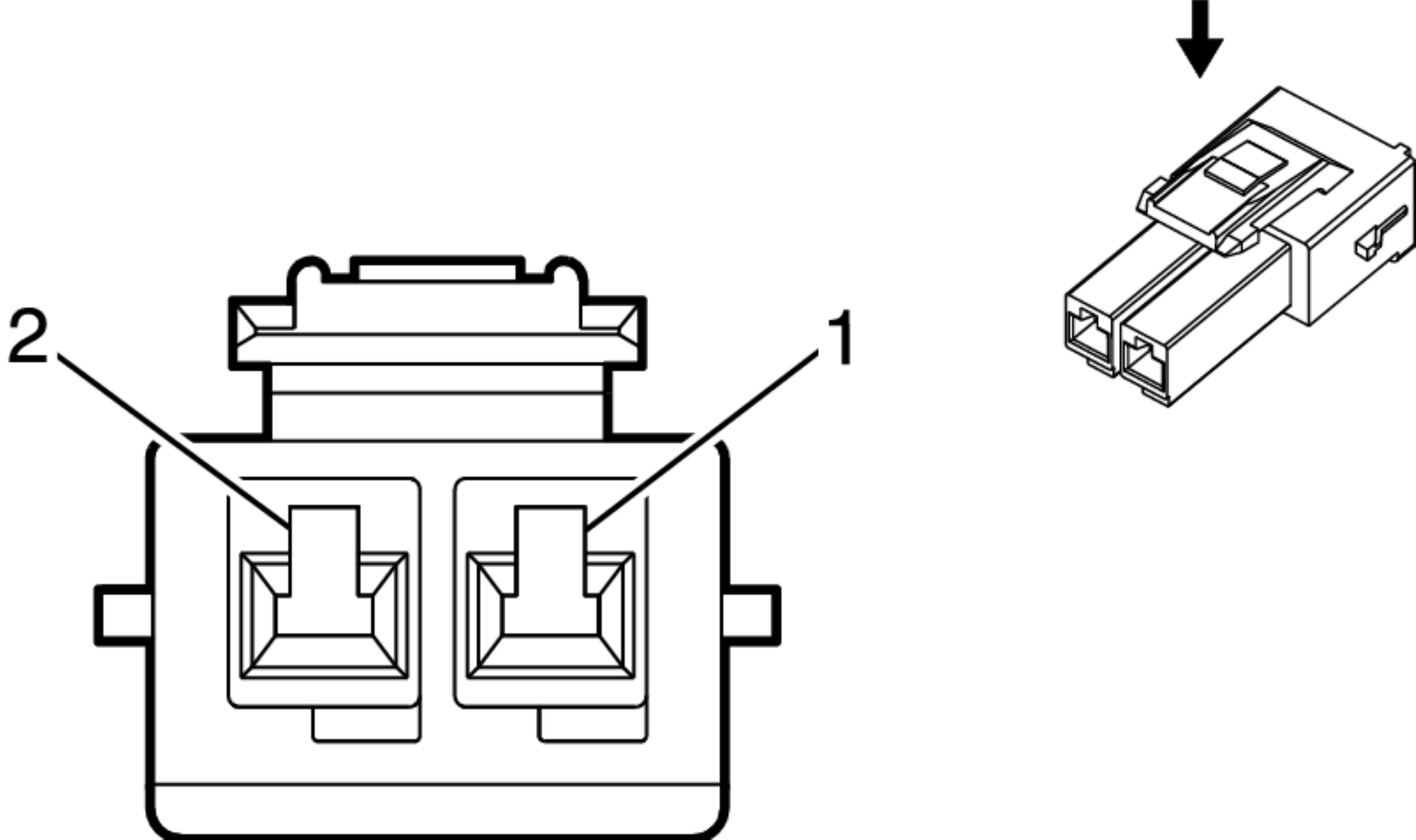

K32 Steering Wheel Heating Control Module Connector End View (44F)
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 177898-1
- Service Connector: Not Available
- Description: 2-Way M Power Double Lock Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
K32 Steering Wheel Heating Control Module Connector End View (44F)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
20 |
OG |
5883 |
Heated Steering Wheel Switch Supply Voltage |
I |
- |
| 2 |
20 |
PK |
5884 |
Indicator Control |
I |
- |
