Garage Door Opener Transmitter Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

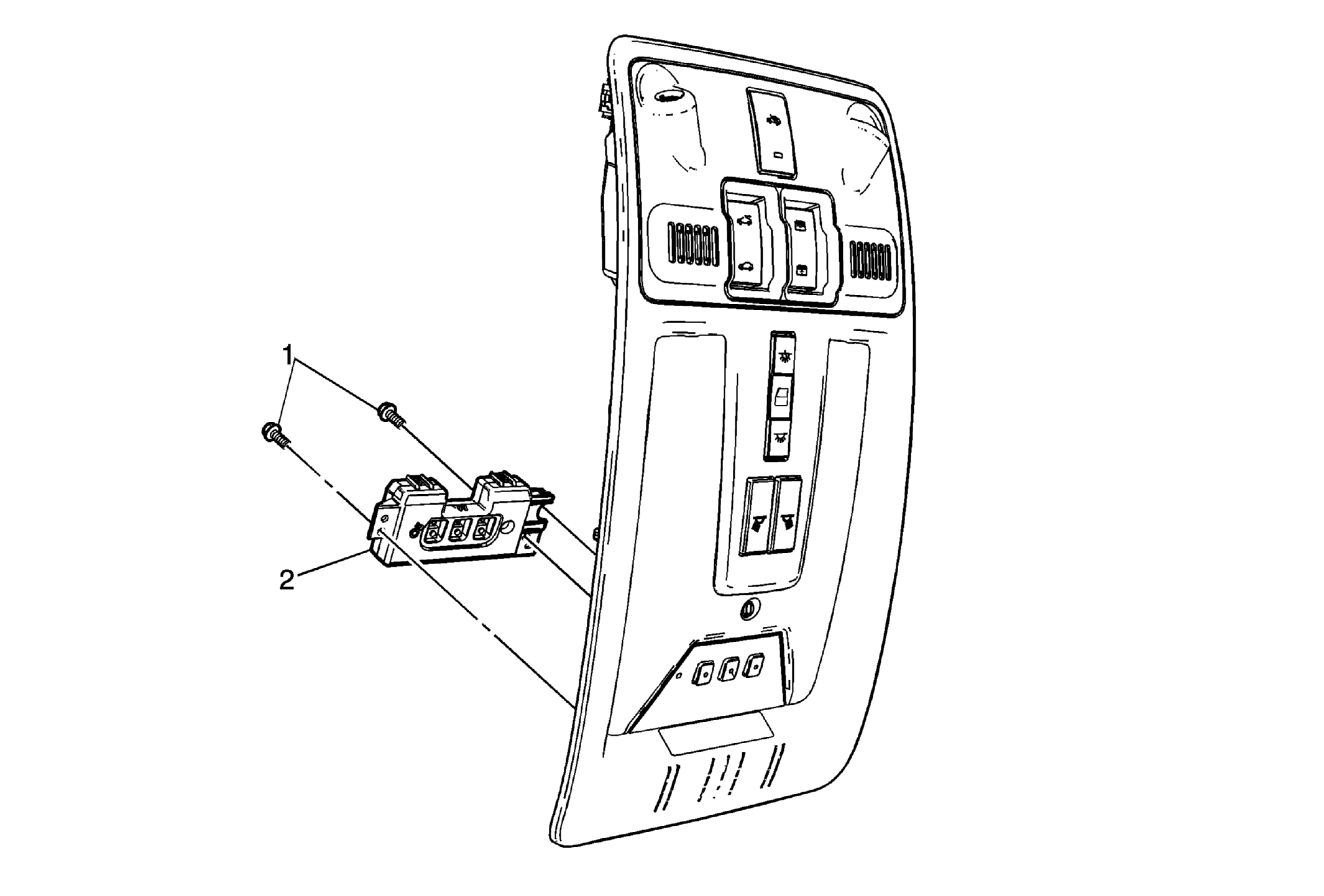

Fig 1: Identifying Garage Door Opener Transmitter & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Garage Door Opener Transmitter Bolts (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Garage Door Opener Transmitter Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up procedures.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Garage Door Opener Transmitter Bolts (Qty: 2)

CAUTION:

Refer to Fastener Caution

Tighten
2.5 N.m (22 lb in)

Garage Door Opener Transmitter

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set-up procedures.
