B218L Side Object Sensor Module - Left (-CZ2)
|
|

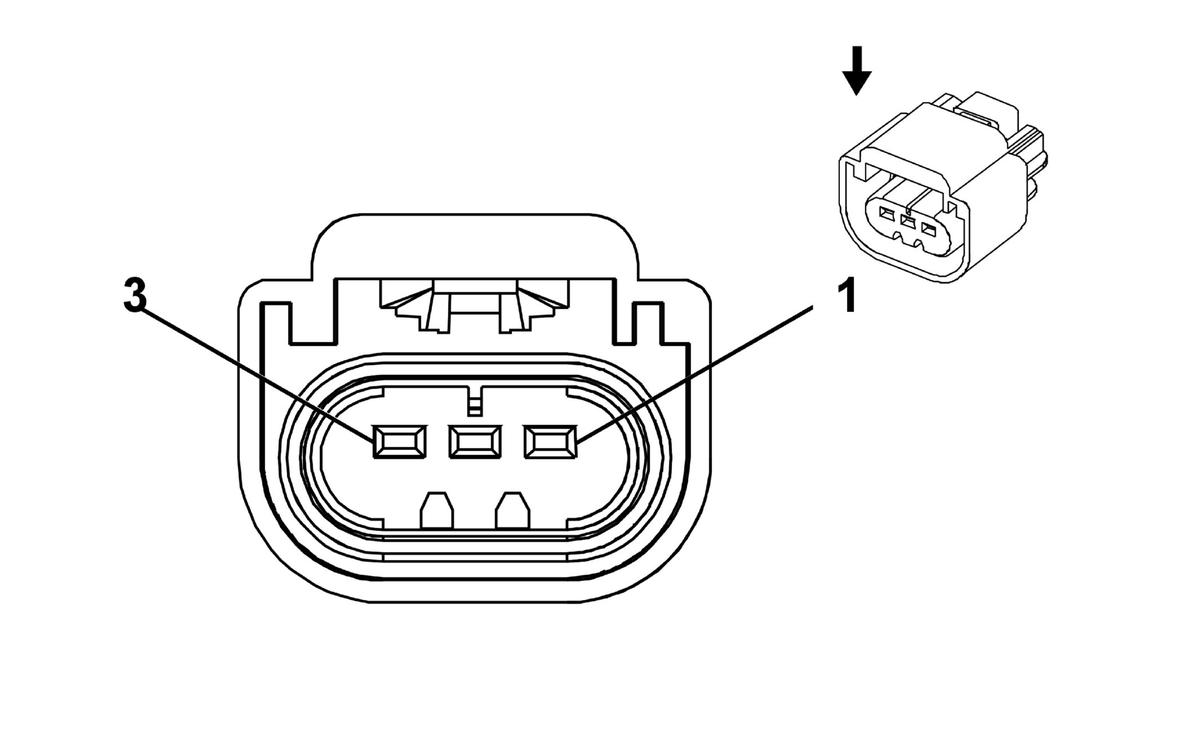

Connector Part Information
- Harness Type: Fuel Composition Sensor
- OEM Connector: 19168017
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
B218L Side Object Sensor Module - Left (-CZ2)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply (5) |
I |
- |
| 2 |
0.5 |
BK |
1350 |
Ground |
I |
- |
| 3 |
0.5 |
WH |
1579 |
Fuel Temperature/Composition Signal |
I |
- |
