Cruise Control System

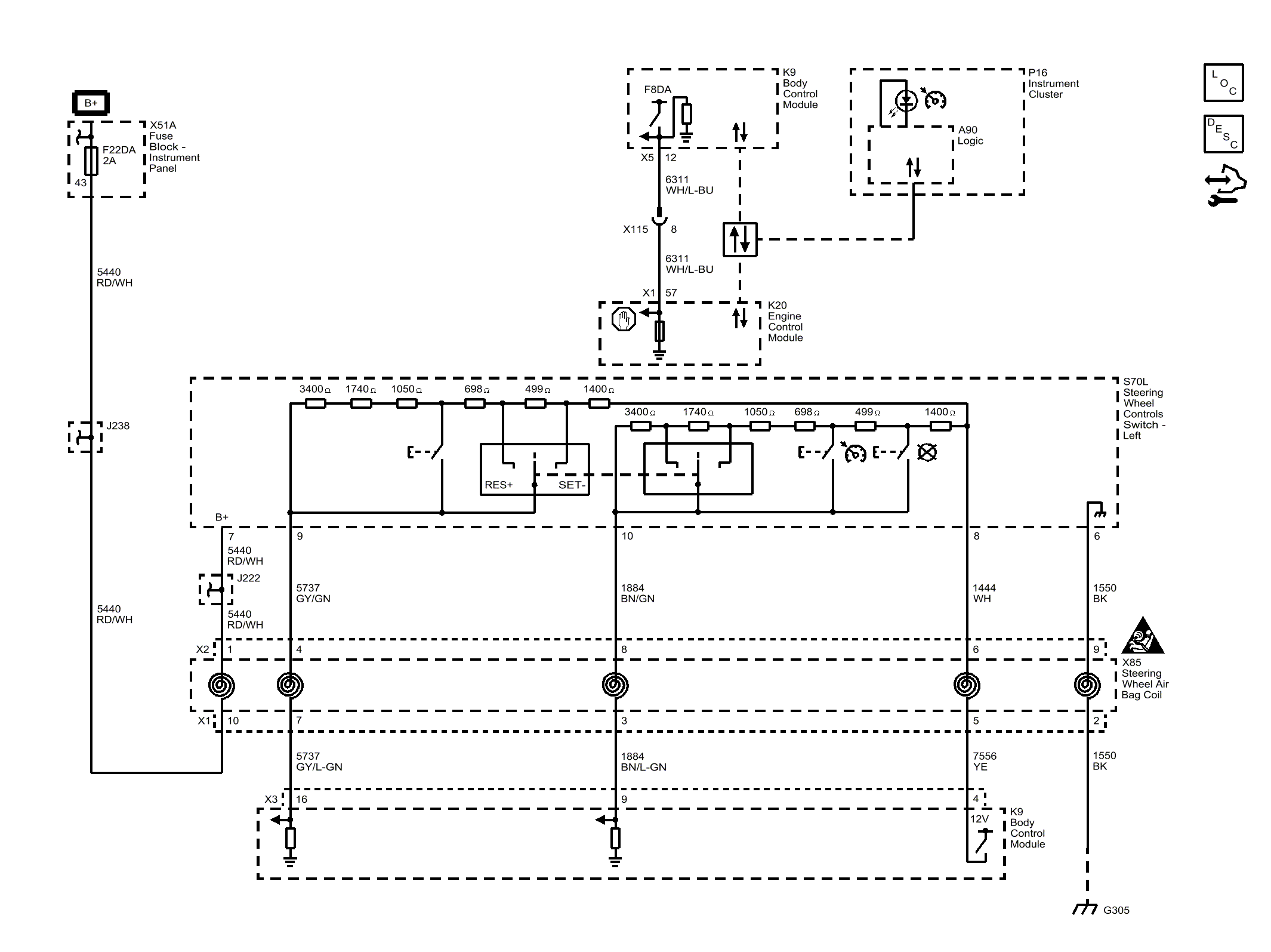

Fig 1: Cruise Control System
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
