Installation Procedure

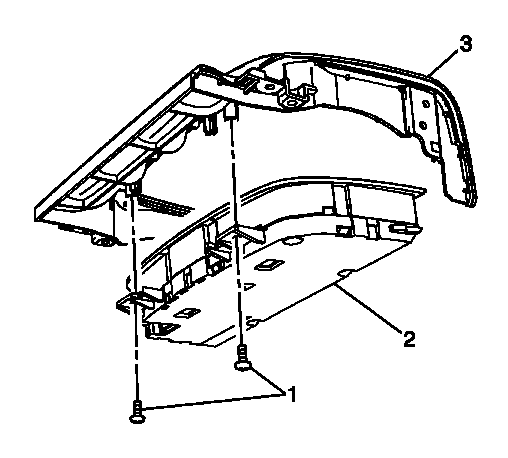

    Fig 1: Radio Control Module, Fasteners & Bezel
    GM3239987Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the heater and air conditioning and radio control module fasteners (1) securing the module (2) to the bezel (3).

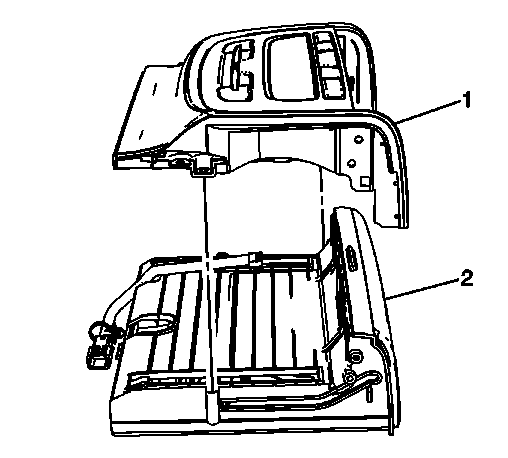

    2. Fig 2: Cup Holder Assembly & Control Module
    GM3239986Courtesy of GENERAL MOTORS COMPANY
  2. Position the module (1) to the cup holder assembly (2).

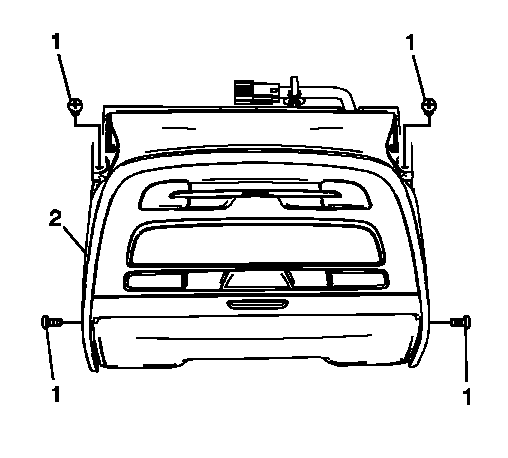

    3. Fig 3: Rear Armrest Assembly Fasteners & Control Module
    GM3239985Courtesy of GENERAL MOTORS COMPANY
  3. Install the rear armrest assembly fasteners (1) to secure the cup holder bezel and control module (2).
  4. Connect the electrical connectors.

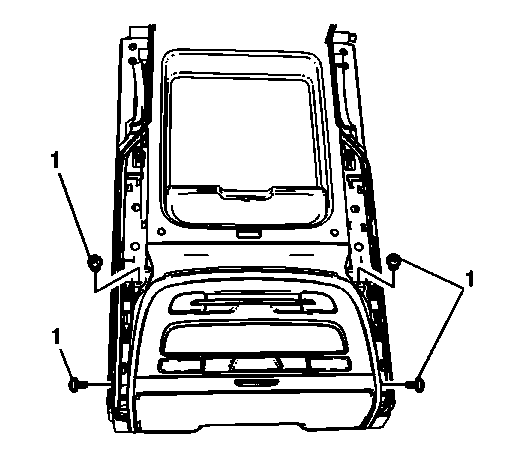

    5. Fig 4: Rear Armrest Assembly Fasteners
    GM3239984Courtesy of GENERAL MOTORS COMPANY
  5. Install the rear armrest assembly fasteners (1) to the cup holder assembly.

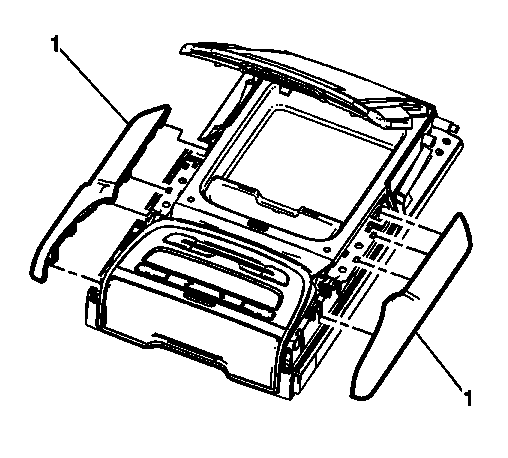

    6. Fig 5: Rear Armrest Panel Trim
    GM3239983Courtesy of GENERAL MOTORS COMPANY
  6. Install the rear armrest panel trim right and left sides (1).
