Video Player Control Replacement

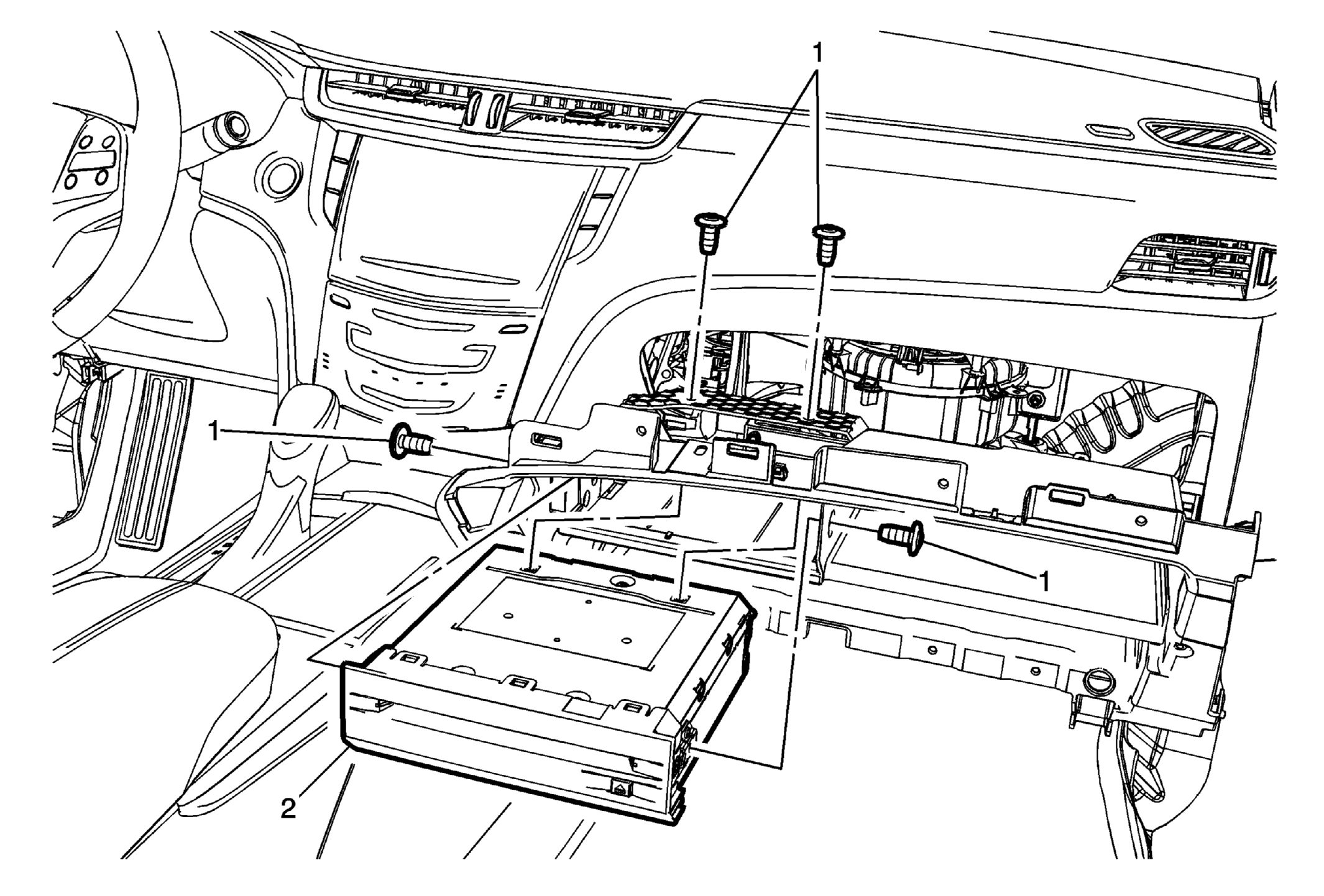

Fig 1: Video Player Control & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment door latch. Refer to Instrument Panel Compartment Door Latch Replacement .
1	Video Disc Player Control Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Video Disc Player Control Procedure Disconnect the electrical connectors.
