Subsystem References (1 of 3)

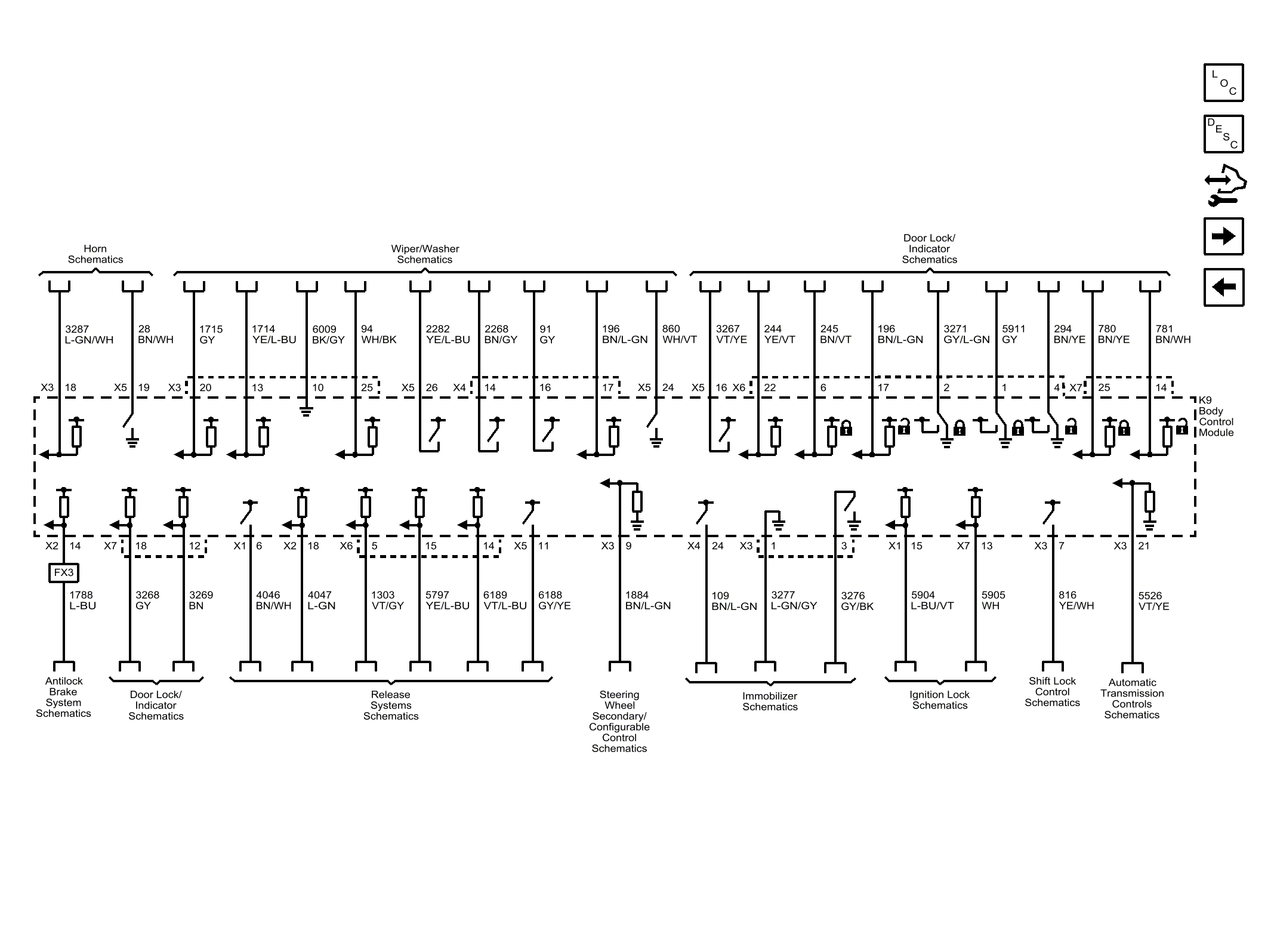

Fig 1: Subsystem References (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
